主流消息中间件

Active MQ

老牌、性能一般

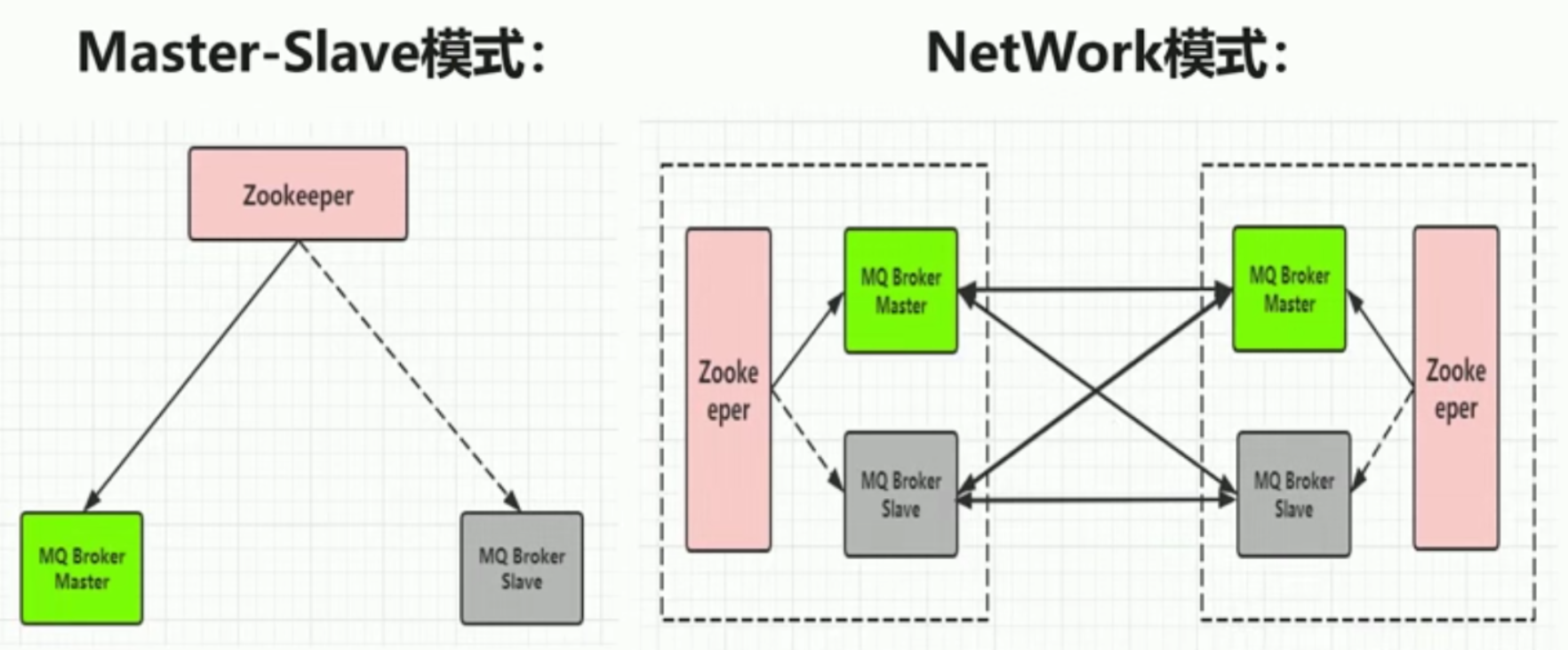

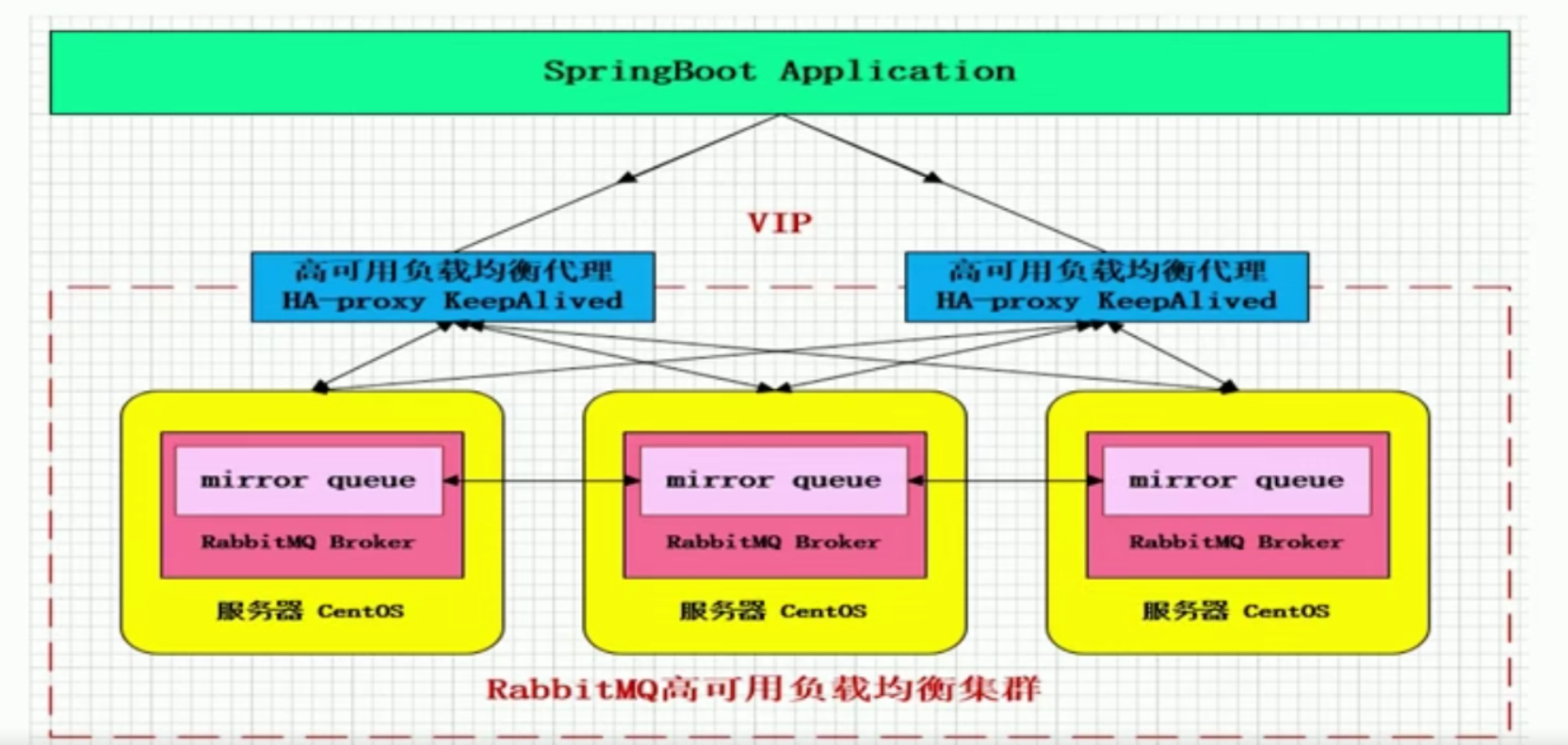

集群架构：

Kafka

• 追求吞吐量
• 面向大数据
• 对重复、丢失、错误没有严格要求
• 基于Pull的模式
• 不支持事务

RocketMQ

• 适合大规模分布式
• 源于Kafka
• 对消息可靠传输与事务做了优化
• 维护困难

RabbitMQ

• Erlang开发
• 基于AMQP
• 数据一致性、稳定性、安全性很好

初识RabbitMQ

• 开源的消息代理和队列服务器
• 基于AMQP
• 用普通协议在完全不同的应用间共享数据
• 配置 ebin/rabbit.app

高性能原因

• Erlang语言效率高，与原生socket一样的延迟

AMQP

• 高级消息队列协议
• 一种规范

核心规范

• Server：又称Broker，接收客户端连接，实现AMQP实体服务。
• Connection：连接，应用程序与Broker的网络连接。
• Channel：网络通道，几乎所有操作都在Chanel中进行，是消息读写的通道，客户端可以建立多个Channel，每个Channel代表一个会话任务。
• Message：用于服务器之间、应用之间传递数据。由properties和body组成。
• Virtual Host：用于逻辑隔离，最上层路由，一个Virtual Host可以有若干个Exchange和Queue，但不能同名。
• Exchange：交换机，接收消息，根据路由键转发到绑定的队列。
• Bingding：Exchange和Queue之间的虚拟连接，binding中可以包含routing key。
• Routing Key：一个路由规则，虚拟机可以由此确定如何路由消息。
• Queue：消息队列，保存消息并转发给消费者。

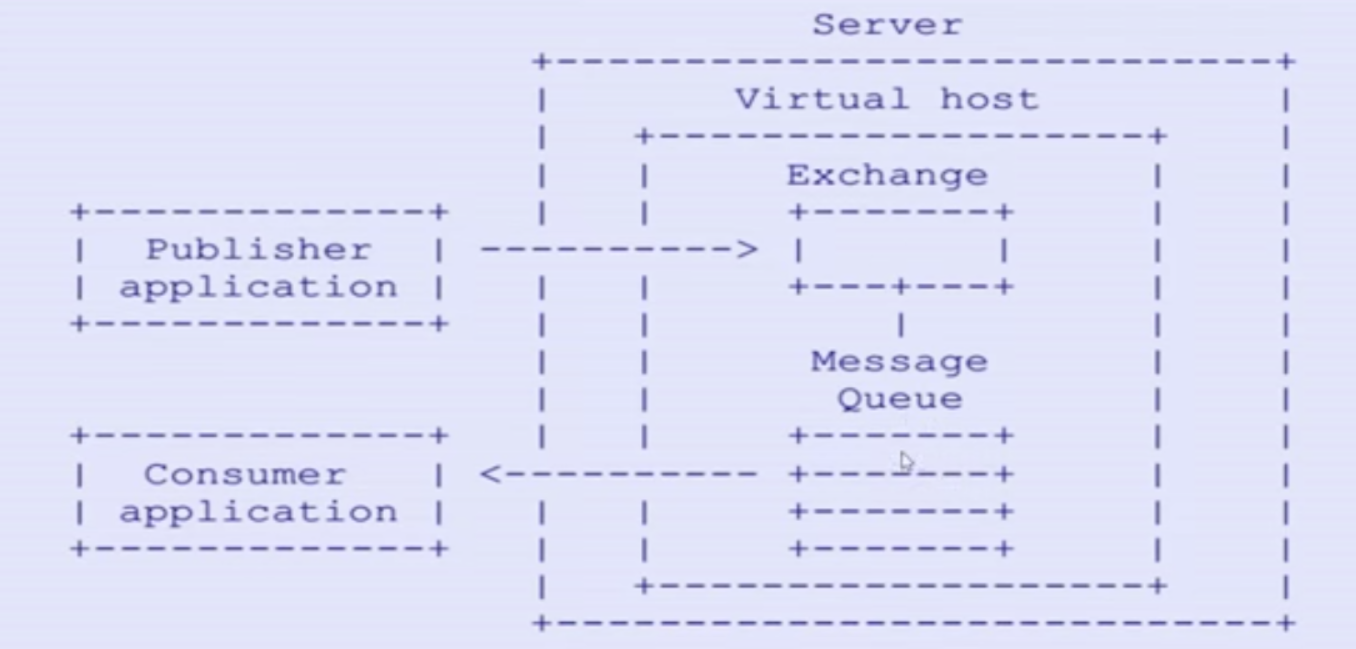

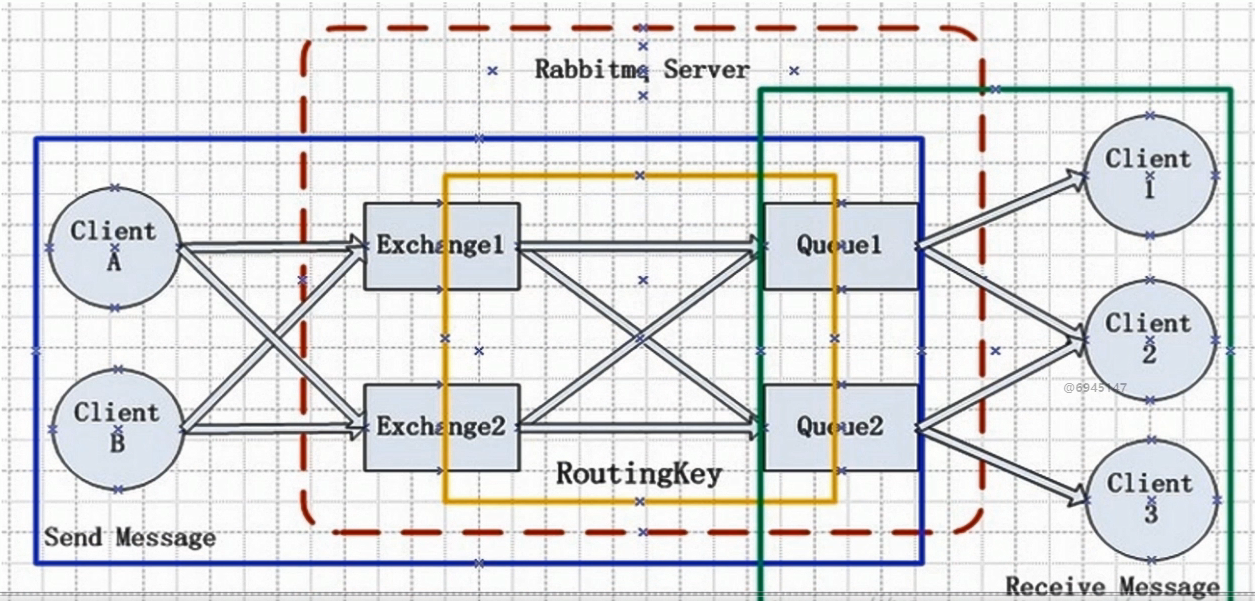

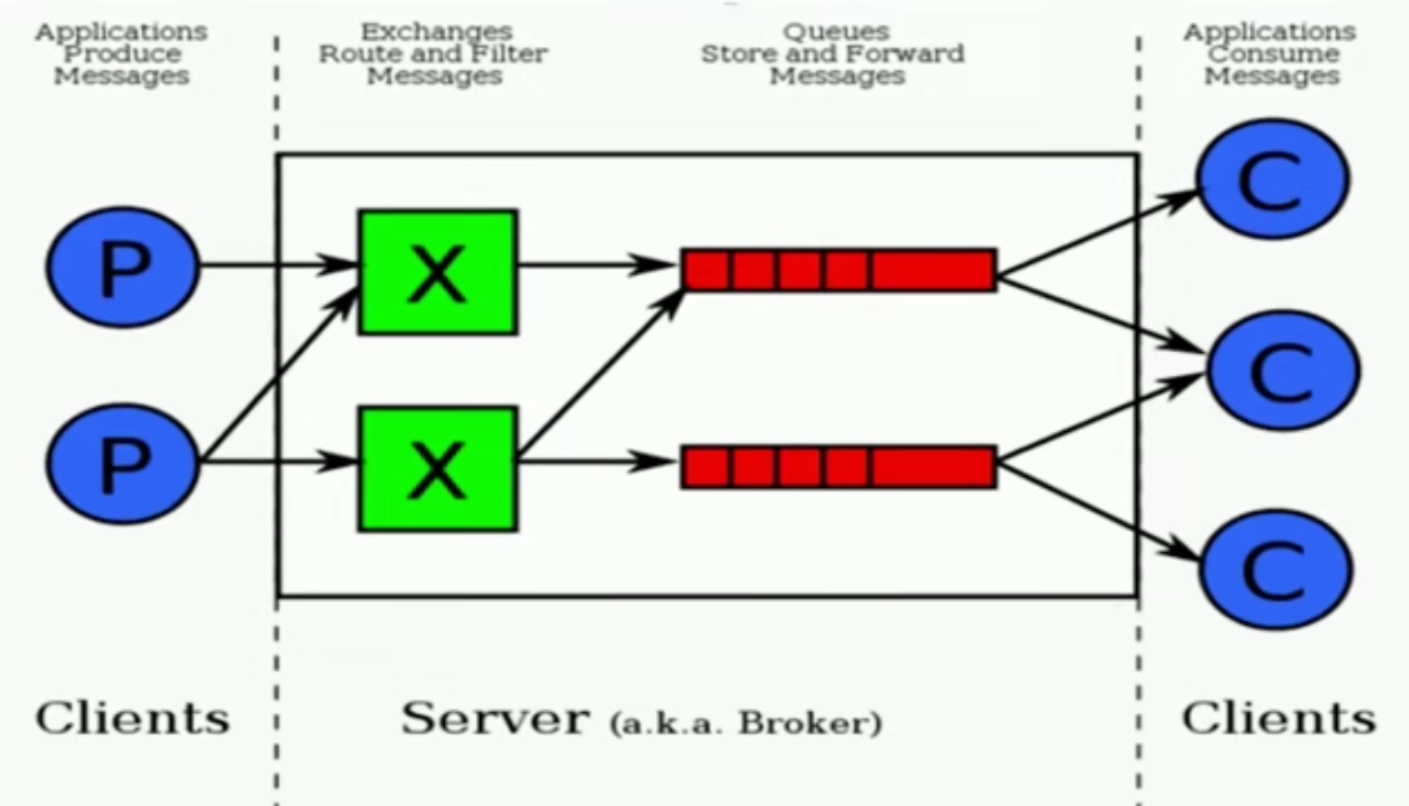

整体架构

启动

rabbitmq-server start & //后台启动

lsof -i:5672 //查看端口

rabbitmqctl stop_app

rabbitmq-plugins list

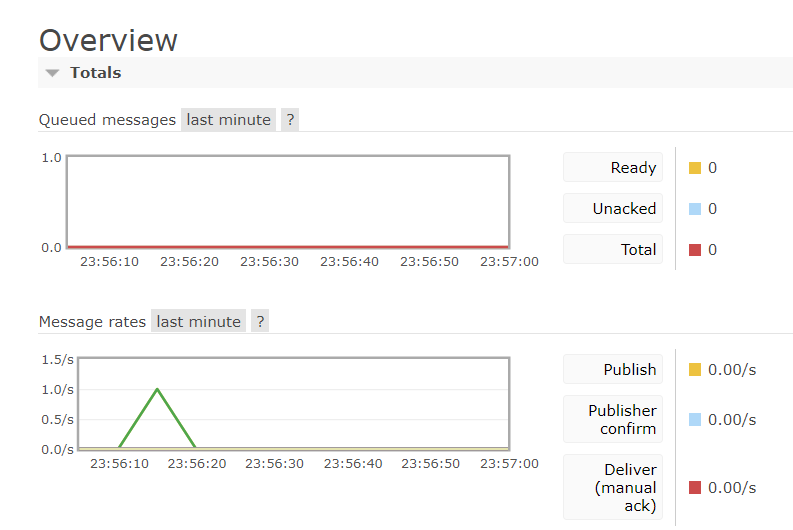

rabbitmq-plugins enable rabbitmq_management

命令行

rabbitmqctl stop_app

rabbitmqctl start_app

rabbitmqctl status

rabbitmqctl List_queues //查看所有队列信息

rabbitmqctl reset //清除所有数据，stop之后使用

简单概念

• ConnectionFactory //获取连接工厂
• Connection //连接
• Channel //数据通信通道，接受或发送消息
• Queue //消息存储队列
• Producer & Consumer //生产者、消费者

快速入门

producer

        //1. create the connection factory and config it
        ConnectionFactory connectionFactory = new ConnectionFactory();
        connectionFactory.setPort(5672);
        connectionFactory.setHost("127.0.0.1");
        connectionFactory.setVirtualHost("/");


        //2. create connection by connection factory
        Connection connection = connectionFactory.newConnection();

        //3. create channel by the connection
        Channel channel = connection.createChannel();

        //4. send data by the channel
        for (int i = 0; i<5; i++){
            String msg = "Hello RbbitMQ";
            channel.basicPublish("","test001",null,msg.getBytes());
        }

        //5. close channel connection
        channel.close();
        connection.close();

第一个参数 exchange默认””则选择default交换机

但是routingkey必须名字相同才会被路由

consumer

        //1. create the connection factory and config it
        ConnectionFactory connectionFactory = new ConnectionFactory();
        connectionFactory.setPort(5672);
        connectionFactory.setHost("127.0.0.1");
        connectionFactory.setVirtualHost("/");


        //2. create connection by connection factory
        Connection connection = connectionFactory.newConnection();

        //3. create channel by the connection
        Channel channel = connection.createChannel();

        //4. declare queue
        String queuename = "test001";

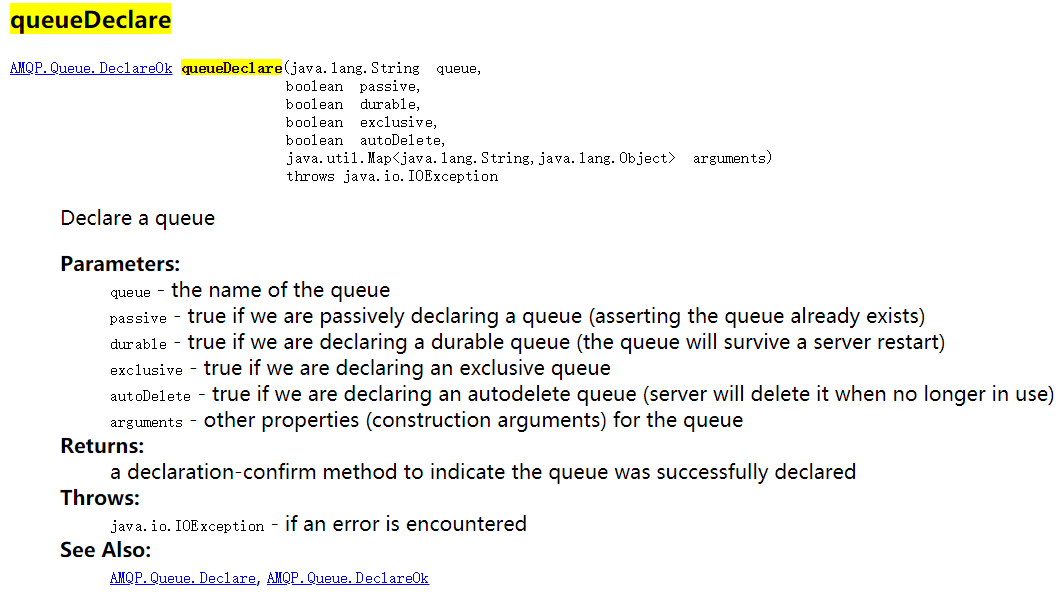

        channel.queueDeclare(queuename,true,false,false,null);

        //5. create the consumer
        QueueingConsumer queueingConsumer = new QueueingConsumer(channel);
        //6. set the channel

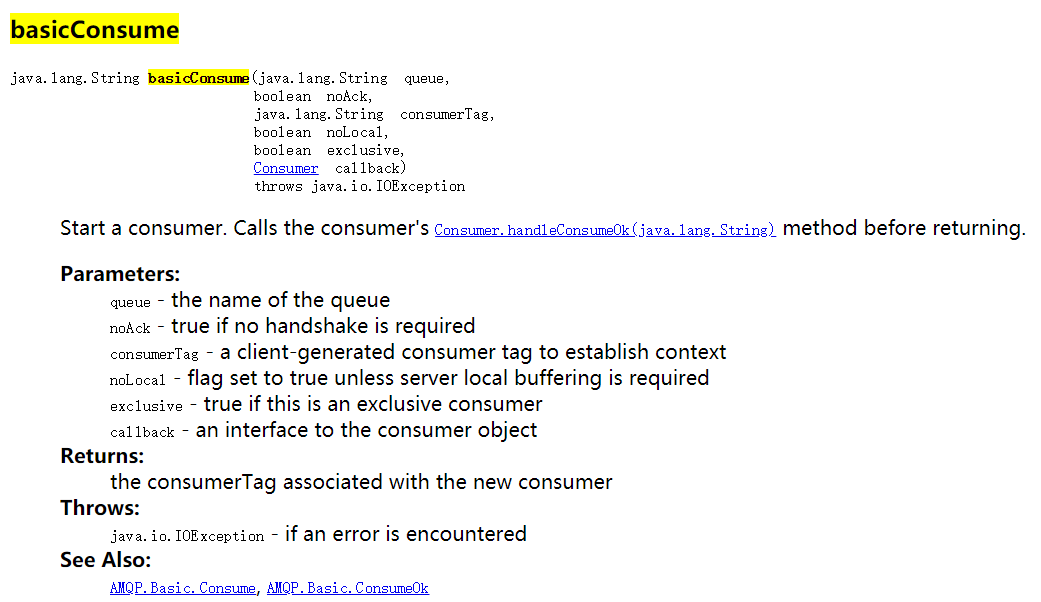

        channel.basicConsume(queuename,true,queueingConsumer);

        //7. get data
        while (true){
            QueueingConsumer.Delivery delivery = queueingConsumer.nextDelivery();
            String body = new String(delivery.getBody());
            System.err.println(body);
//            Envelope envelope = delivery.getEnvelope();
        }

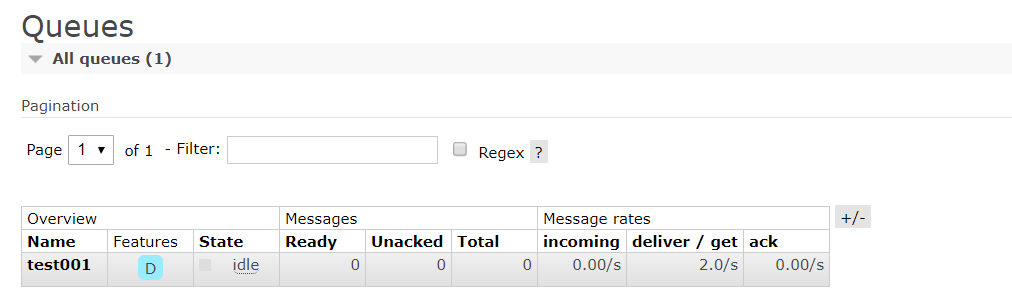

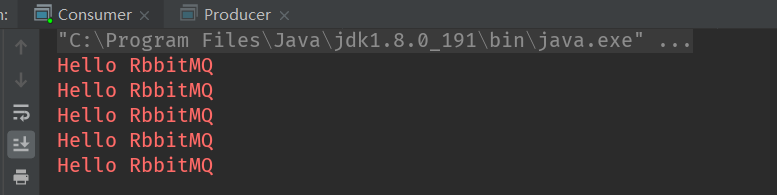

运行代码：先启动consumer，producer启动后执行完成（consumer接收到消息）

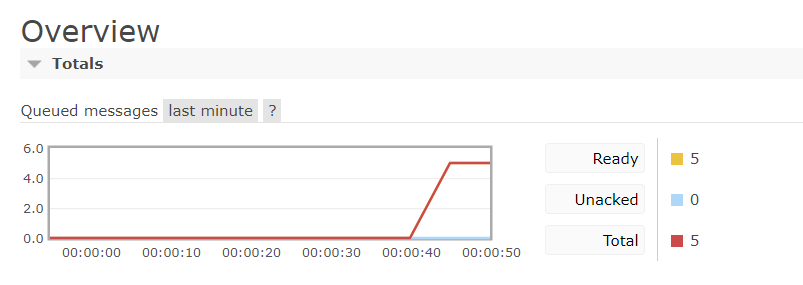

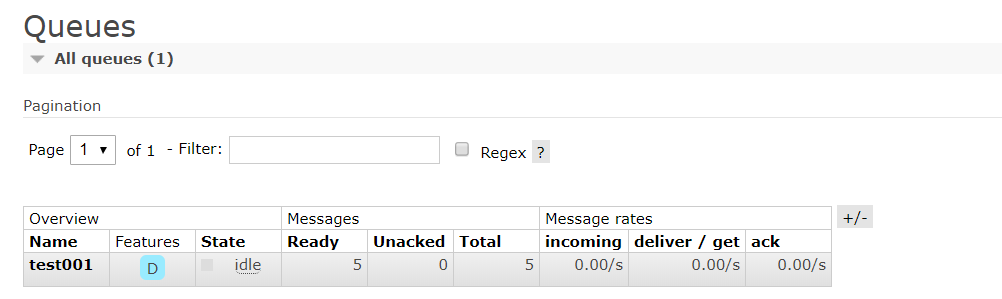

先启动producer，消息存储在队列中

再启动consumer：消息被消费

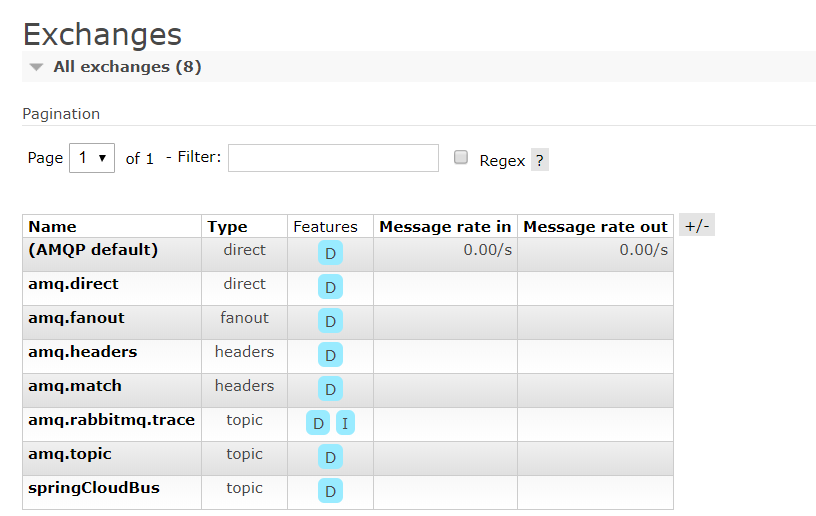

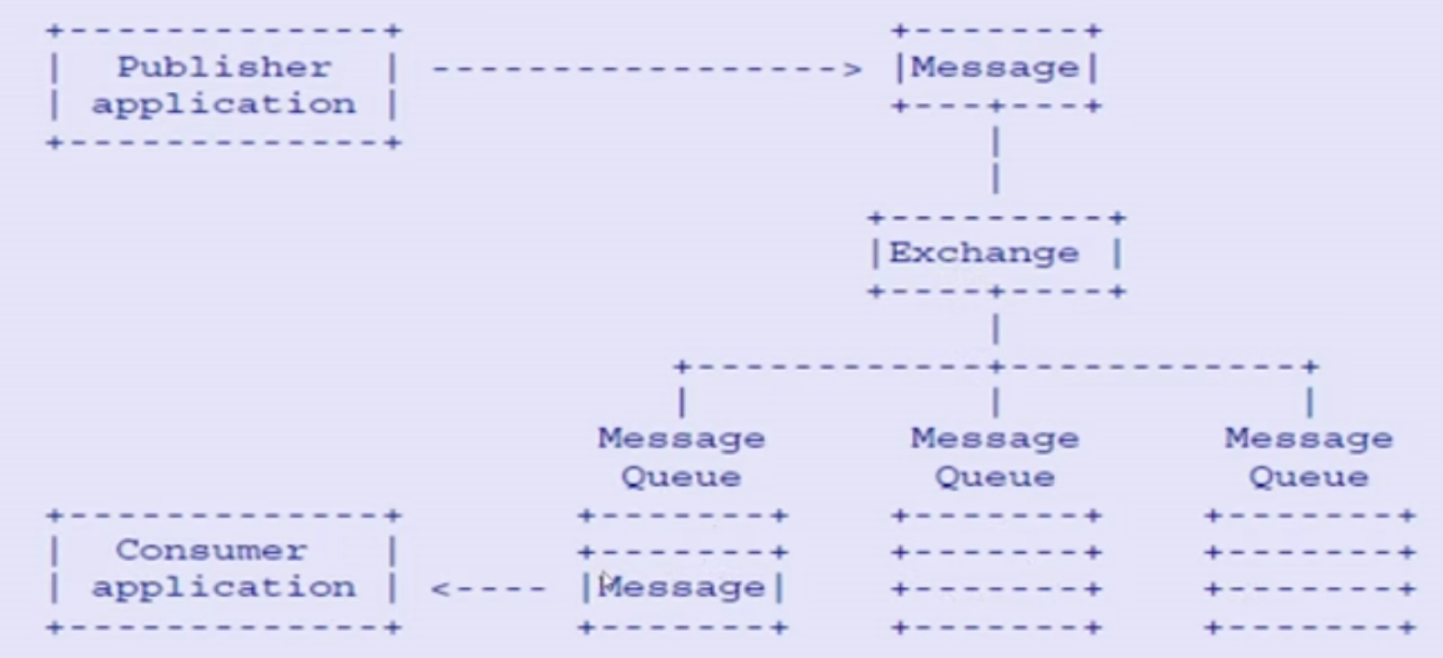

Exchange

• 交换机类型Type: direct, topic, fanout, headers
• Durability: true为持久化
• Auto Delete: 当最后一个绑定在Exchange上的队列删除后，自动删除这个Exchange
• Internal：当前Exchange是否用于内部使用，默认false
• Arguments：扩展参数定制化使用

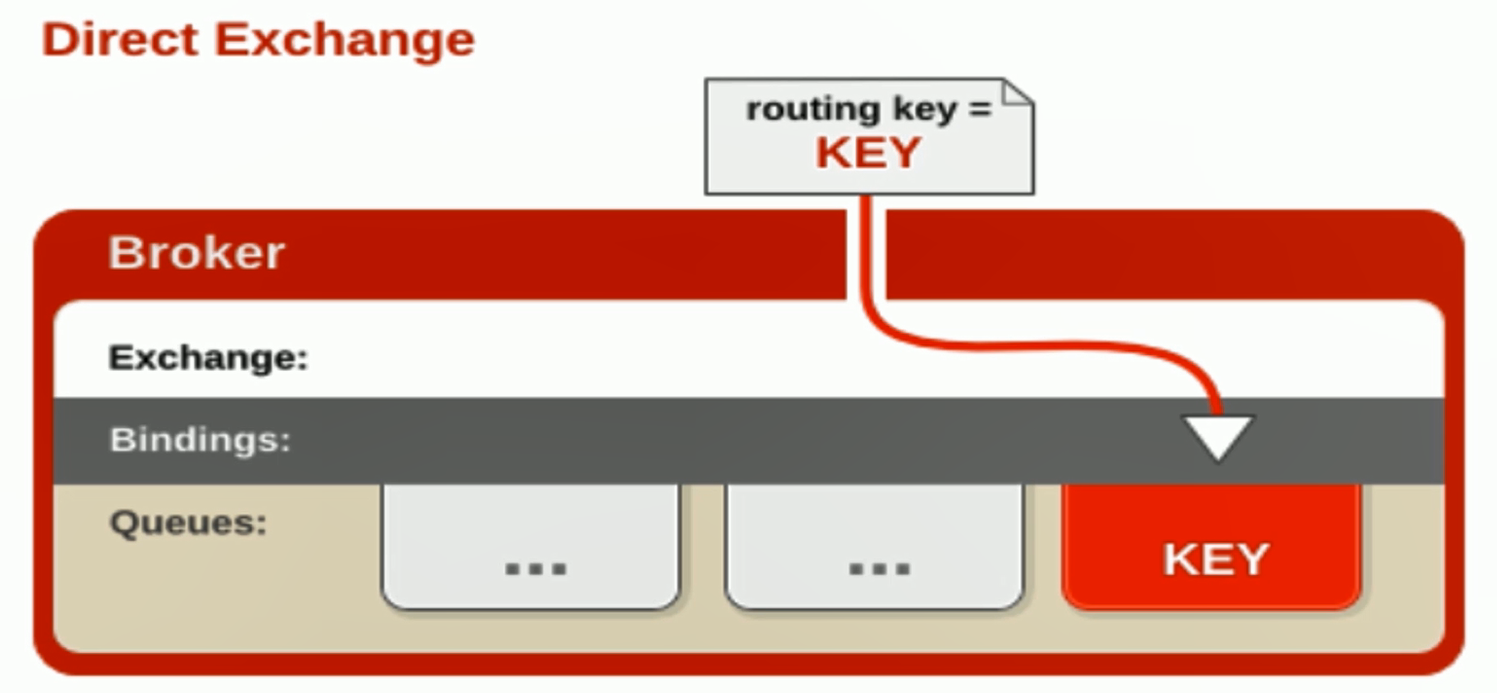

Direct Exchange

所有发送到Direct Exchange的消息被转发到RouteKey中指定的Queue

consumer

import com.rabbitmq.client.Channel;
import com.rabbitmq.client.Connection;
import com.rabbitmq.client.ConnectionFactory;
import com.rabbitmq.client.QueueingConsumer;
import com.rabbitmq.client.QueueingConsumer.Delivery;

public class Consumer4DirectExchange {

    public static void main(String[] args) throws Exception {


        ConnectionFactory connectionFactory = new ConnectionFactory() ;

        connectionFactory.setHost("192.168.11.76");
        connectionFactory.setPort(5672);
        connectionFactory.setVirtualHost("/");

        connectionFactory.setAutomaticRecoveryEnabled(true);
        connectionFactory.setNetworkRecoveryInterval(3000);
        Connection connection = connectionFactory.newConnection();

        Channel channel = connection.createChannel();
        //4 声明
        String exchangeName = "test_direct_exchange";
        String exchangeType = "direct";
        String queueName = "test_direct_queue";
        String routingKey = "test.direct";

        //表示声明了一个交换机
        channel.exchangeDeclare(exchangeName, exchangeType, true, false, false, null);
        //表示声明了一个队列
        channel.queueDeclare(queueName, false, false, false, null);
        //建立一个绑定关系:
        channel.queueBind(queueName, exchangeName, routingKey);

        //durable 是否持久化消息
        QueueingConsumer consumer = new QueueingConsumer(channel);
        //参数：队列名称、是否自动ACK、Consumer
        channel.basicConsume(queueName, true, consumer);
        //循环获取消息
        while(true){
            //获取消息，如果没有消息，这一步将会一直阻塞
            Delivery delivery = consumer.nextDelivery();
            String msg = new String(delivery.getBody());
            System.out.println("收到消息：" + msg);
        }
    }
}

producer

import com.rabbitmq.client.Channel;
import com.rabbitmq.client.Connection;
import com.rabbitmq.client.ConnectionFactory;

public class Producer4DirectExchange {


    public static void main(String[] args) throws Exception {

        //1 创建ConnectionFactory
        ConnectionFactory connectionFactory = new ConnectionFactory();
        connectionFactory.setHost("192.168.11.76");
        connectionFactory.setPort(5672);
        connectionFactory.setVirtualHost("/");

        //2 创建Connection
        Connection connection = connectionFactory.newConnection();
        //3 创建Channel
        Channel channel = connection.createChannel();
        //4 声明
        String exchangeName = "test_direct_exchange";
        String routingKey = "test.direct111";
        //5 发送

        String msg = "Hello World RabbitMQ 4  Direct Exchange Message 111 ... ";
        channel.basicPublish(exchangeName, routingKey , null , msg.getBytes());

    }
}

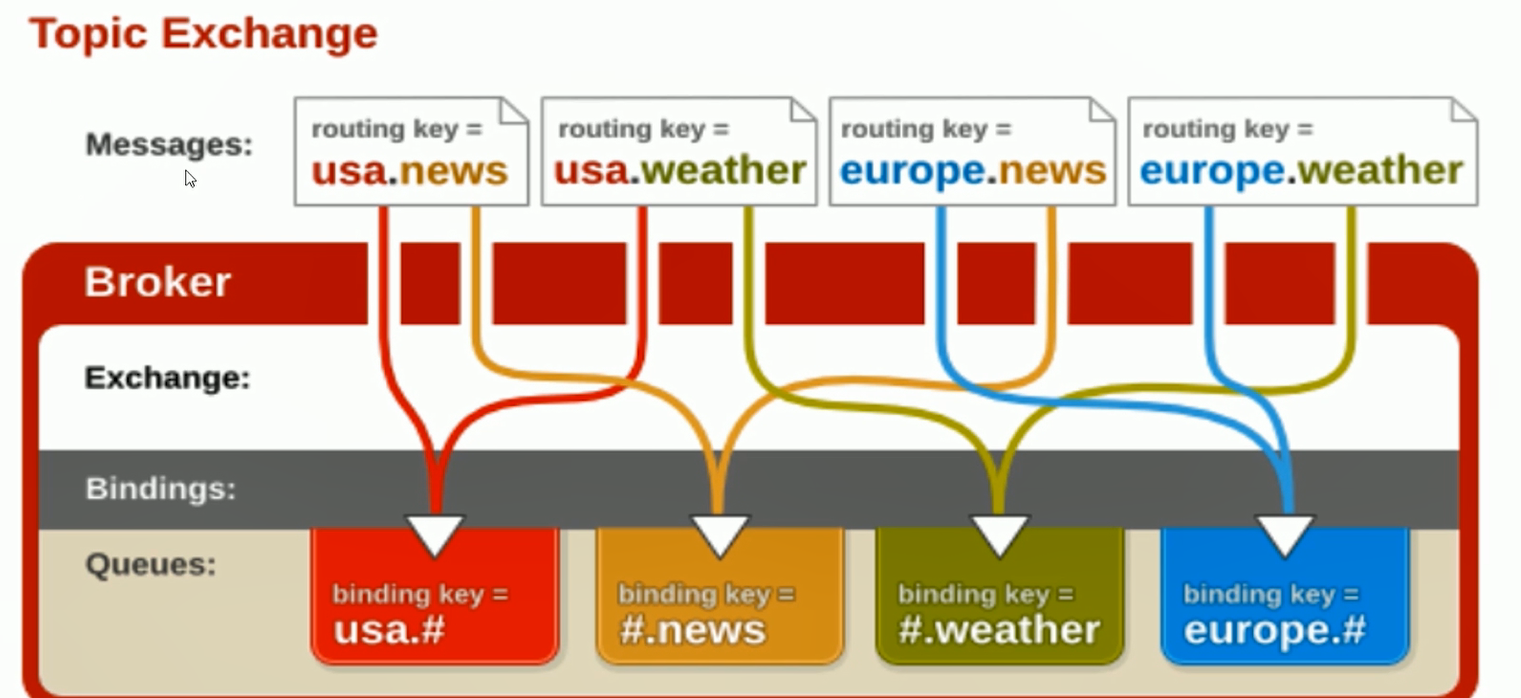

Topic Exchange

所有发送到topic exchange 的消息，被转发到所关心的routekey中指定topic的queue中

exchange将routekey和某个topic进行模糊匹配，此时，队列需要绑定一个topic

log.# -> log.xx.xxx

log.* -> log.xxx

import com.rabbitmq.client.Channel;
import com.rabbitmq.client.Connection;
import com.rabbitmq.client.ConnectionFactory;
import com.rabbitmq.client.QueueingConsumer;
import com.rabbitmq.client.QueueingConsumer.Delivery;

public class Consumer4TopicExchange {

    public static void main(String[] args) throws Exception {


        ConnectionFactory connectionFactory = new ConnectionFactory() ;

        connectionFactory.setHost("192.168.11.76");
        connectionFactory.setPort(5672);
        connectionFactory.setVirtualHost("/");

        connectionFactory.setAutomaticRecoveryEnabled(true);
        connectionFactory.setNetworkRecoveryInterval(3000);
        Connection connection = connectionFactory.newConnection();

        Channel channel = connection.createChannel();
        //4 声明
        String exchangeName = "test_topic_exchange";
        String exchangeType = "topic";
        String queueName = "test_topic_queue";
        //String routingKey = "user.*";
        String routingKey = "user.*";
        // 1 声明交换机
        channel.exchangeDeclare(exchangeName, exchangeType, true, false, false, null);
        // 2 声明队列
        channel.queueDeclare(queueName, false, false, false, null);
        // 3 建立交换机和队列的绑定关系:
        channel.queueBind(queueName, exchangeName, routingKey);

        //durable 是否持久化消息
        QueueingConsumer consumer = new QueueingConsumer(channel);
        //参数：队列名称、是否自动ACK、Consumer
        channel.basicConsume(queueName, true, consumer);
        //循环获取消息
        while(true){
            //获取消息，如果没有消息，这一步将会一直阻塞
            Delivery delivery = consumer.nextDelivery();
            String msg = new String(delivery.getBody());
            System.out.println("收到消息：" + msg);
        }
    }
}

import com.rabbitmq.client.Channel;
import com.rabbitmq.client.Connection;
import com.rabbitmq.client.ConnectionFactory;

public class Producer4TopicExchange {


    public static void main(String[] args) throws Exception {

        //1 创建ConnectionFactory
        ConnectionFactory connectionFactory = new ConnectionFactory();
        connectionFactory.setHost("192.168.11.76");
        connectionFactory.setPort(5672);
        connectionFactory.setVirtualHost("/");

        //2 创建Connection
        Connection connection = connectionFactory.newConnection();
        //3 创建Channel
        Channel channel = connection.createChannel();
        //4 声明
        String exchangeName = "test_topic_exchange";
        String routingKey1 = "user.save";
        String routingKey2 = "user.update";
        String routingKey3 = "user.delete.abc";
        //5 发送

        String msg = "Hello World RabbitMQ 4 Topic Exchange Message ...";
        channel.basicPublish(exchangeName, routingKey1 , null , msg.getBytes());
        channel.basicPublish(exchangeName, routingKey2 , null , msg.getBytes());
        channel.basicPublish(exchangeName, routingKey3 , null , msg.getBytes());
        channel.close();
        connection.close();
    }

}

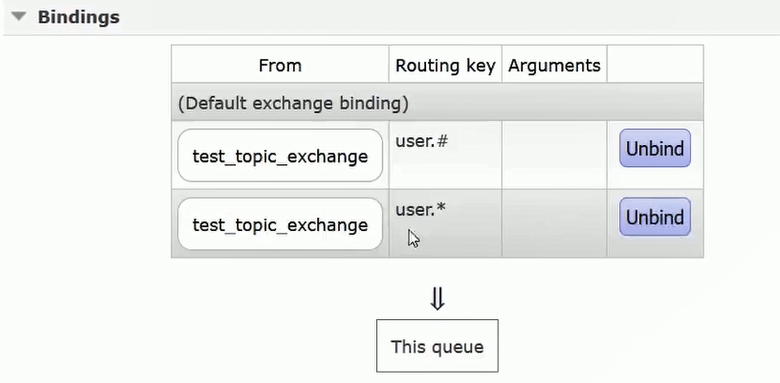

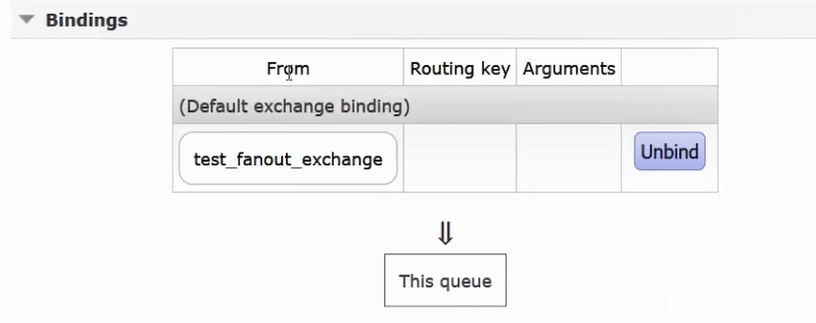

曾经使用过的规则不会自动解绑

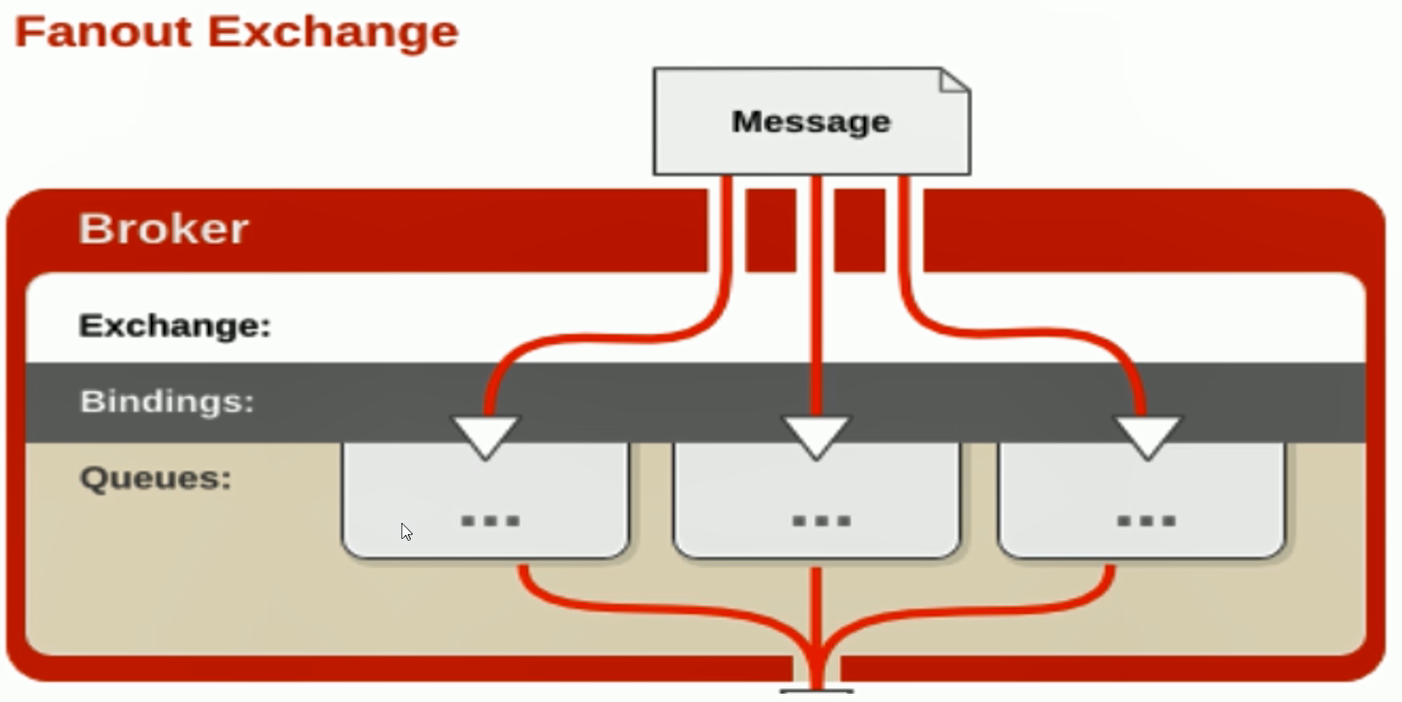

Fanout Exchange

不处理任何路由键，只简单把queue和exchange绑定

发送到该交换机的消息都会转发到与该交换机绑定的队列上

性能最好、速度最快

import com.rabbitmq.client.Channel;
import com.rabbitmq.client.Connection;
import com.rabbitmq.client.ConnectionFactory;
import com.rabbitmq.client.QueueingConsumer;
import com.rabbitmq.client.QueueingConsumer.Delivery;

public class Consumer4FanoutExchange {

    public static void main(String[] args) throws Exception {

        ConnectionFactory connectionFactory = new ConnectionFactory() ;

        connectionFactory.setHost("192.168.11.76");
        connectionFactory.setPort(5672);
        connectionFactory.setVirtualHost("/");

        connectionFactory.setAutomaticRecoveryEnabled(true);
        connectionFactory.setNetworkRecoveryInterval(3000);
        Connection connection = connectionFactory.newConnection();

        Channel channel = connection.createChannel();
        //4 声明
        String exchangeName = "test_fanout_exchange";
        String exchangeType = "fanout";
        String queueName = "test_fanout_queue";
        String routingKey = "";    //不设置路由键
        channel.exchangeDeclare(exchangeName, exchangeType, true, false, false, null);
        channel.queueDeclare(queueName, false, false, false, null);
        channel.queueBind(queueName, exchangeName, routingKey);

        //durable 是否持久化消息
        QueueingConsumer consumer = new QueueingConsumer(channel);
        //参数：队列名称、是否自动ACK、Consumer
        channel.basicConsume(queueName, true, consumer);
        //循环获取消息
        while(true){
            //获取消息，如果没有消息，这一步将会一直阻塞
            Delivery delivery = consumer.nextDelivery();
            String msg = new String(delivery.getBody());
            System.out.println("收到消息：" + msg);
        }
    }
}

import com.rabbitmq.client.Channel;
import com.rabbitmq.client.Connection;
import com.rabbitmq.client.ConnectionFactory;

public class Producer4FanoutExchange {


    public static void main(String[] args) throws Exception {

        //1 创建ConnectionFactory
        ConnectionFactory connectionFactory = new ConnectionFactory();
        connectionFactory.setHost("192.168.11.76");
        connectionFactory.setPort(5672);
        connectionFactory.setVirtualHost("/");

        //2 创建Connection
        Connection connection = connectionFactory.newConnection();
        //3 创建Channel
        Channel channel = connection.createChannel();
        //4 声明
        String exchangeName = "test_fanout_exchange";
        //5 发送
        for(int i = 0; i < 10; i ++) {
            String msg = "Hello World RabbitMQ 4 FANOUT Exchange Message ...";
            channel.basicPublish(exchangeName, "", null , msg.getBytes());
            //routekeycan be anything, no influence
        }
        channel.close();
        connection.close();
    }

}

Bingding

Exchange 与 Exchange、Queue之间的连接关系

可以包含routing key等参数

Queue

Durability：是否持久化Durable、Transient

Auto delete：如果yes，最后一个监听移除后，queue自动删除

Message

传递的数据

Properties，Payload（Body）两部分组成

常用属性：delivery mode、headers（自定义属性）

priority优先级

content_type, content_encoding

correlation_id:消息唯一id

reply_to\ expiration 存活时间\ message_id

import java.util.Map;

import com.rabbitmq.client.Channel;
import com.rabbitmq.client.Connection;
import com.rabbitmq.client.ConnectionFactory;
import com.rabbitmq.client.Envelope;
import com.rabbitmq.client.QueueingConsumer;
import com.rabbitmq.client.QueueingConsumer.Delivery;

public class Consumer {

    public static void main(String[] args) throws Exception {

        //1 创建一个ConnectionFactory, 并进行配置
        ConnectionFactory connectionFactory = new ConnectionFactory();
        connectionFactory.setHost("192.168.11.76");
        connectionFactory.setPort(5672);
        connectionFactory.setVirtualHost("/");

        //2 通过连接工厂创建连接
        Connection connection = connectionFactory.newConnection();

        //3 通过connection创建一个Channel
        Channel channel = connection.createChannel();

        //4 声明（创建）一个队列
        String queueName = "test001";
        channel.queueDeclare(queueName, true, false, false, null);

        //5 创建消费者
        QueueingConsumer queueingConsumer = new QueueingConsumer(channel);

        //6 设置Channel
        channel.basicConsume(queueName, true, queueingConsumer);

        while(true){
            //7 获取消息
            Delivery delivery = queueingConsumer.nextDelivery();
            String msg = new String(delivery.getBody());
            System.err.println("消费端: " + msg);
            Map<String, Object> headers = delivery.getProperties().getHeaders();
            System.err.println("headers get my1 value: " + headers.get("my1"));

            //Envelope envelope = delivery.getEnvelope();
        }

    }
}

import java.util.HashMap;
import java.util.Map;

import com.rabbitmq.client.AMQP;
import com.rabbitmq.client.Channel;
import com.rabbitmq.client.Connection;
import com.rabbitmq.client.ConnectionFactory;

public class Procuder {


    public static void main(String[] args) throws Exception {
        //1 创建一个ConnectionFactory, 并进行配置
        ConnectionFactory connectionFactory = new ConnectionFactory();
        connectionFactory.setHost("192.168.11.76");
        connectionFactory.setPort(5672);
        connectionFactory.setVirtualHost("/");

        //2 通过连接工厂创建连接
        Connection connection = connectionFactory.newConnection();

        //3 通过connection创建一个Channel
        Channel channel = connection.createChannel();

        Map<String, Object> headers = new HashMap<>();
        headers.put("my1", "111");
        headers.put("my2", "222");


        AMQP.BasicProperties properties = new AMQP.BasicProperties.Builder()
                .deliveryMode(2)//durable
                .contentEncoding("UTF-8")//encoding
                .expiration("10000")
                .headers(headers)
                .build();

        //4 通过Channel发送数据
        for(int i=0; i < 5; i++){
            String msg = "Hello RabbitMQ!";
            //1 exchange   2 routingKey
            channel.basicPublish("", "test001", properties, msg.getBytes());
        }

        //5 记得要关闭相关的连接
        channel.close();
        connection.close();
    }
}

Virtual Host

虚拟地址，用于逻辑隔离，最上层的消息路由

一个VH里可以有若干个Exchange 和Queue

同一个VH里exchange 和queue名称不能相同

高级特性

消息的可靠性传递

• 保障消息成功发出
• 保障MQ节点成功接收
• 发送端收到MQ节点确认应答
• 完善的消息补偿机制

解决方案

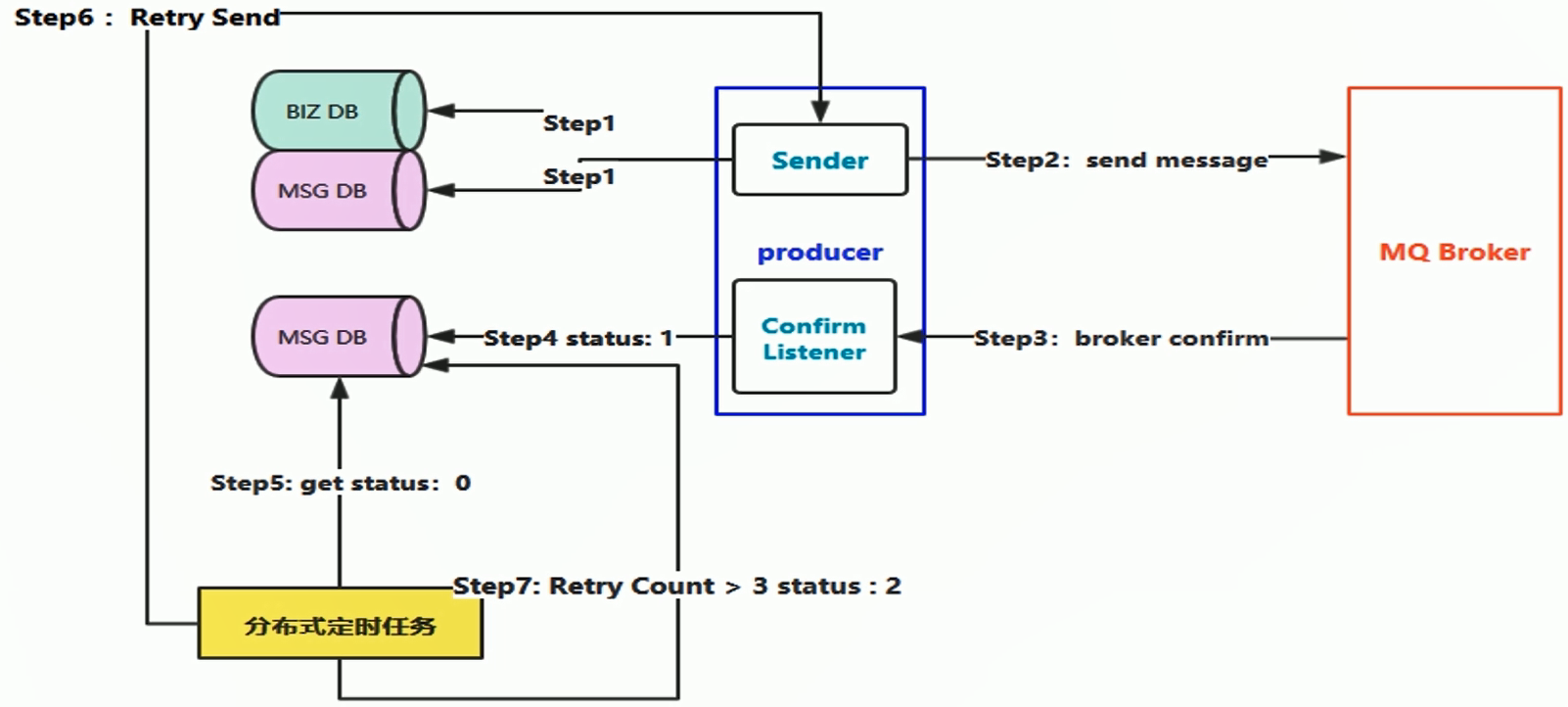

1、消息入库，对消息打标记

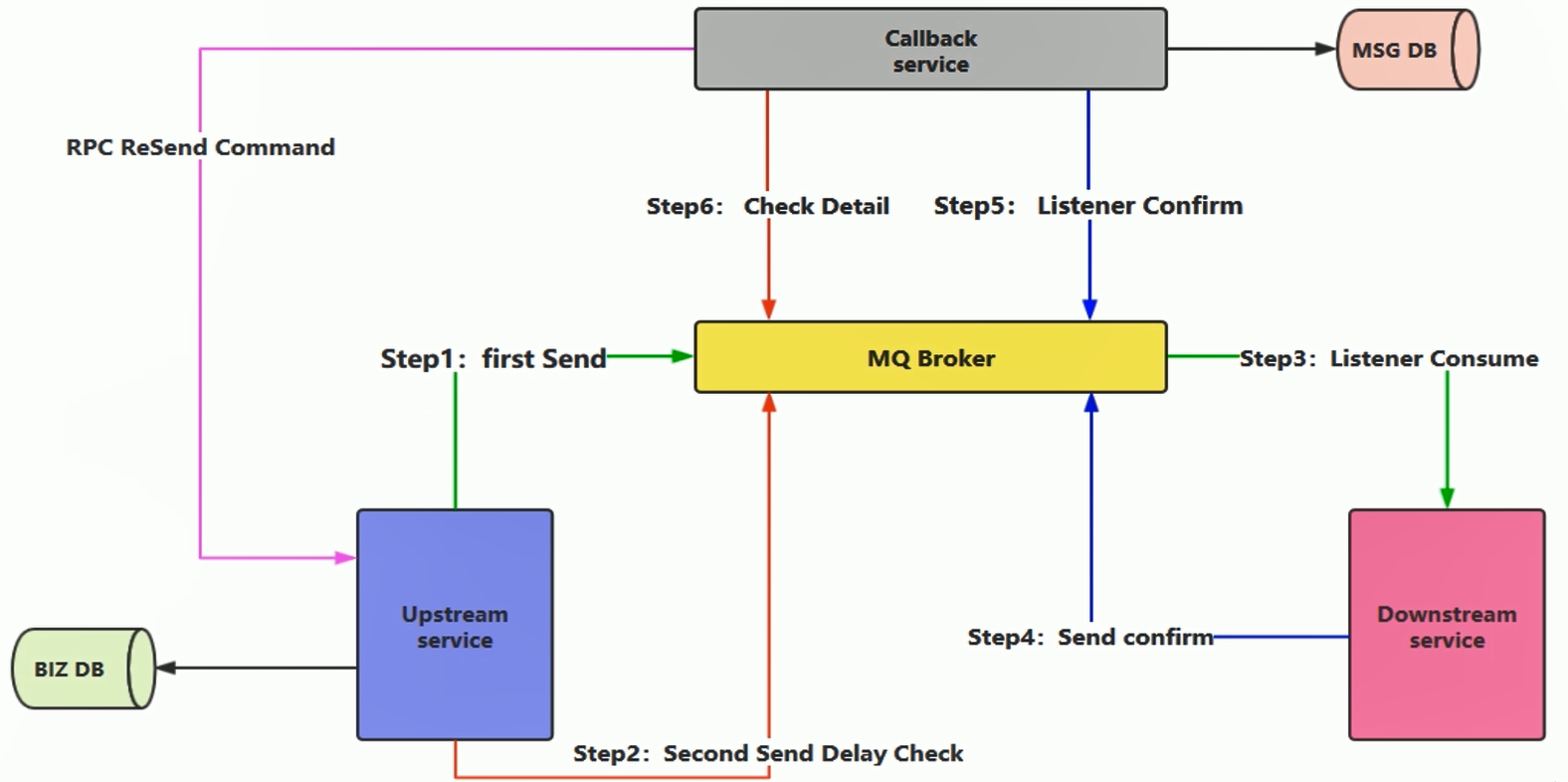

2、消息延迟投递，做二次确认，延迟检查

幂等性

对一个操作无论执行多少次，结果相同，避免重复消费

主流幂等操作：

1、唯一ID+指纹码，利用数据库主键去重

先查询，有，返回失败，没有，插入新数据

实现简单，但是数据库压力较大，可以分库分表解决

2、利用Redis原子特性实现

如果落库，需要考虑数据库缓存的原子性

如果不入库，需要考虑定时同步策略

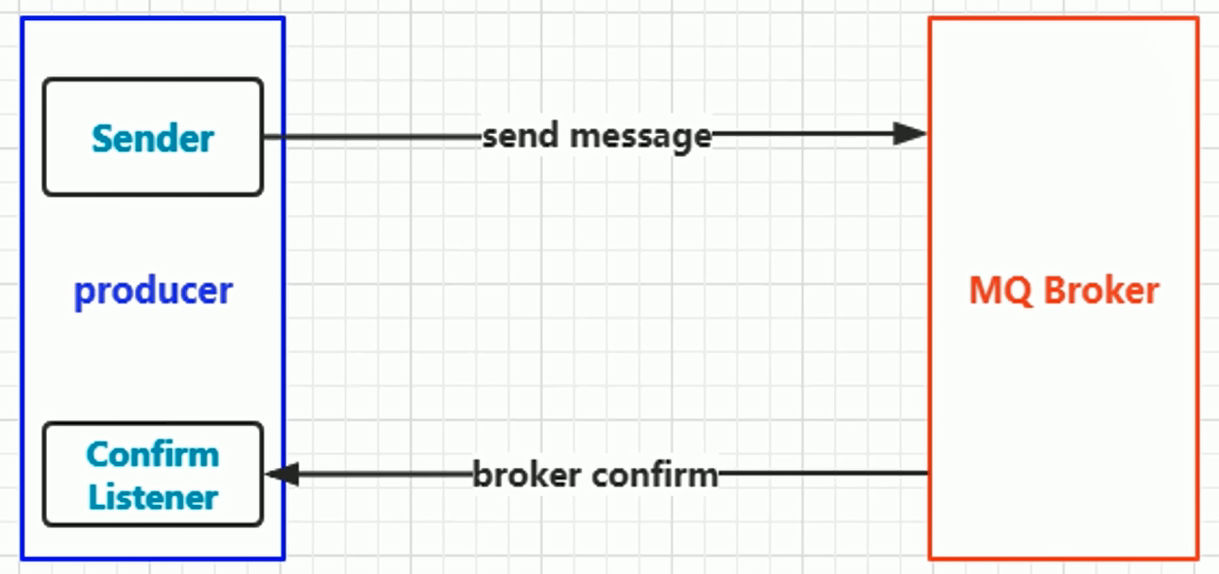

Confirm确认消息

消息确认：生产者的消息投递之后，若broker收到，会给生产者应答

确认步骤：

1、channel上开启确认模式: channel.confirmSelect()

2、在channel上添加监听，addConfirmListener，监听成功或者失败的返回结果，根据具体结果决定是否重新发送，记录日志等

import com.rabbitmq.client.Channel;
import com.rabbitmq.client.Connection;
import com.rabbitmq.client.ConnectionFactory;
import com.rabbitmq.client.QueueingConsumer;
import com.rabbitmq.client.QueueingConsumer.Delivery;

public class Consumer {


    public static void main(String[] args) throws Exception {


        //1 创建ConnectionFactory
        ConnectionFactory connectionFactory = new ConnectionFactory();
        connectionFactory.setHost("192.168.11.76");
        connectionFactory.setPort(5672);
        connectionFactory.setVirtualHost("/");

        //2 获取C    onnection
        Connection connection = connectionFactory.newConnection();

        //3 通过Connection创建一个新的Channel
        Channel channel = connection.createChannel();

        String exchangeName = "test_confirm_exchange";
        String routingKey = "confirm.#";
        String queueName = "test_confirm_queue";

        //4 声明交换机和队列 然后进行绑定设置, 最后制定路由Key
        channel.exchangeDeclare(exchangeName, "topic", true);
        channel.queueDeclare(queueName, true, false, false, null);
        channel.queueBind(queueName, exchangeName, routingKey);

        //5 创建消费者
        QueueingConsumer queueingConsumer = new QueueingConsumer(channel);
        channel.basicConsume(queueName, true, queueingConsumer);

        while(true){
            Delivery delivery = queueingConsumer.nextDelivery();
            String msg = new String(delivery.getBody());

            System.err.println("消费端: " + msg);
        }


    }
}

import java.io.IOException;

import com.rabbitmq.client.Channel;
import com.rabbitmq.client.ConfirmListener;
import com.rabbitmq.client.Connection;
import com.rabbitmq.client.ConnectionFactory;

public class Producer {


    public static void main(String[] args) throws Exception {


        //1 创建ConnectionFactory
        ConnectionFactory connectionFactory = new ConnectionFactory();
        connectionFactory.setHost("192.168.11.76");
        connectionFactory.setPort(5672);
        connectionFactory.setVirtualHost("/");

        //2 获取C    onnection
        Connection connection = connectionFactory.newConnection();

        //3 通过Connection创建一个新的Channel
        Channel channel = connection.createChannel();


        //4 指定我们的消息投递模式: 消息的确认模式
        channel.confirmSelect();

        String exchangeName = "test_confirm_exchange";
        String routingKey = "confirm.save";

        //5 发送一条消息
        String msg = "Hello RabbitMQ Send confirm message!";
        channel.basicPublish(exchangeName, routingKey, null, msg.getBytes());

        //6 添加一个确认监听
        channel.addConfirmListener(new ConfirmListener() {
            @Override
            public void handleNack(long deliveryTag, boolean multiple) throws IOException {
                System.err.println("-------no ack!-----------");
            }

            @Override
            public void handleAck(long deliveryTag, boolean multiple) throws IOException {
                System.err.println("-------ack!-----------");
            }
        });
    }
}

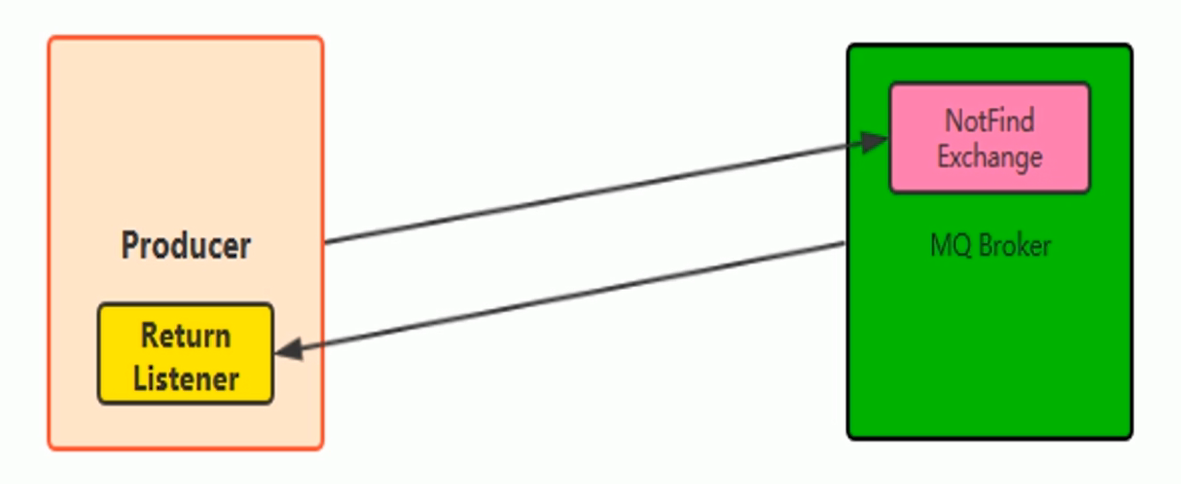

Return消息机制

ReurnListener用于处理一些不可路由的消息

某些情况，消息无法通过exchange或者routingkey，监听这种不可达消息，使用return listener

配置项：

Mandatory，若为true，监听器会接受不可达的消息，做后续处理，若为false，broker会自动删除消息

import com.rabbitmq.client.Channel;
import com.rabbitmq.client.Connection;
import com.rabbitmq.client.ConnectionFactory;
import com.rabbitmq.client.QueueingConsumer;
import com.rabbitmq.client.QueueingConsumer.Delivery;

public class Consumer {


    public static void main(String[] args) throws Exception {


        ConnectionFactory connectionFactory = new ConnectionFactory();
        connectionFactory.setHost("192.168.11.76");
        connectionFactory.setPort(5672);
        connectionFactory.setVirtualHost("/");

        Connection connection = connectionFactory.newConnection();
        Channel channel = connection.createChannel();

        String exchangeName = "test_return_exchange";
        String routingKey = "return.#";
        String queueName = "test_return_queue";

        channel.exchangeDeclare(exchangeName, "topic", true, false, null);
        channel.queueDeclare(queueName, true, false, false, null);
        channel.queueBind(queueName, exchangeName, routingKey);

        QueueingConsumer queueingConsumer = new QueueingConsumer(channel);

        channel.basicConsume(queueName, true, queueingConsumer);

        while(true){

            Delivery delivery = queueingConsumer.nextDelivery();
            String msg = new String(delivery.getBody());
            System.err.println("消费者: " + msg);
        }
    }
}

import java.io.IOException;
import com.rabbitmq.client.AMQP;
import com.rabbitmq.client.Channel;
import com.rabbitmq.client.Connection;
import com.rabbitmq.client.ConnectionFactory;
import com.rabbitmq.client.ReturnListener;
import com.rabbitmq.client.AMQP.BasicProperties;

public class Producer {


    public static void main(String[] args) throws Exception {


        ConnectionFactory connectionFactory = new ConnectionFactory();
        connectionFactory.setHost("192.168.11.76");
        connectionFactory.setPort(5672);
        connectionFactory.setVirtualHost("/");

        Connection connection = connectionFactory.newConnection();
        Channel channel = connection.createChannel();

        String exchange = "test_return_exchange";
        String routingKey = "return.save";
        String routingKeyError = "abc.save";

        String msg = "Hello RabbitMQ Return Message";


        channel.addReturnListener(new ReturnListener() {
            @Override
            public void handleReturn(int replyCode, String replyText, String exchange,
                    String routingKey, AMQP.BasicProperties properties, byte[] body) throws IOException {

                System.err.println("---------handle  return----------");
                System.err.println("replyCode: " + replyCode);
                System.err.println("replyText: " + replyText);
                System.err.println("exchange: " + exchange);
                System.err.println("routingKey: " + routingKey);
                System.err.println("properties: " + properties);
                System.err.println("body: " + new String(body));
            }
        });


        channel.basicPublish(exchange, routingKeyError, true, null, msg.getBytes());

        //channel.basicPublish(exchange, routingKeyError, true, null, msg.getBytes());
    }
}

消费端自动监听

避免while循环下nextDlivery

继承DefaultConsumer即可，override handleDelivery方法

import com.rabbitmq.client.Channel;
import com.rabbitmq.client.Connection;
import com.rabbitmq.client.ConnectionFactory;

public class Producer {


    public static void main(String[] args) throws Exception {

        ConnectionFactory connectionFactory = new ConnectionFactory();
        connectionFactory.setHost("192.168.11.76");
        connectionFactory.setPort(5672);
        connectionFactory.setVirtualHost("/");

        Connection connection = connectionFactory.newConnection();
        Channel channel = connection.createChannel();

        String exchange = "test_consumer_exchange";
        String routingKey = "consumer.save";

        String msg = "Hello RabbitMQ Consumer Message";

        for(int i =0; i<5; i ++){
            channel.basicPublish(exchange, routingKey, true, null, msg.getBytes());
        }

    }
}

import com.rabbitmq.client.Channel;
import com.rabbitmq.client.Connection;
import com.rabbitmq.client.ConnectionFactory;
import com.rabbitmq.client.QueueingConsumer;
import com.rabbitmq.client.QueueingConsumer.Delivery;

public class Consumer {


    public static void main(String[] args) throws Exception {


        ConnectionFactory connectionFactory = new ConnectionFactory();
        connectionFactory.setHost("192.168.11.76");
        connectionFactory.setPort(5672);
        connectionFactory.setVirtualHost("/");

        Connection connection = connectionFactory.newConnection();
        Channel channel = connection.createChannel();


        String exchangeName = "test_consumer_exchange";
        String routingKey = "consumer.#";
        String queueName = "test_consumer_queue";

        channel.exchangeDeclare(exchangeName, "topic", true, false, null);
        channel.queueDeclare(queueName, true, false, false, null);
        channel.queueBind(queueName, exchangeName, routingKey);

        channel.basicConsume(queueName, true, new MyConsumer(channel));
    }
}

自定义myconsumer

import java.io.IOException;
import com.rabbitmq.client.AMQP;
import com.rabbitmq.client.Channel;
import com.rabbitmq.client.DefaultConsumer;
import com.rabbitmq.client.Envelope;

public class MyConsumer extends DefaultConsumer {


    public MyConsumer(Channel channel) {
        super(channel);
    }

    @Override
    public void handleDelivery(String consumerTag, Envelope envelope, AMQP.BasicProperties properties, byte[] body) throws IOException {
        System.err.println("-----------consume message----------");
        System.err.println("consumerTag: " + consumerTag);
        System.err.println("envelope: " + envelope);
        System.err.println("properties: " + properties);
        System.err.println("body: " + new String(body));
    }
}

消费端限流

broker囤积大量消息后，消费端开始接受，大量数据涌来，导致服务器崩溃等问题

消费端速度低于生产端速度时

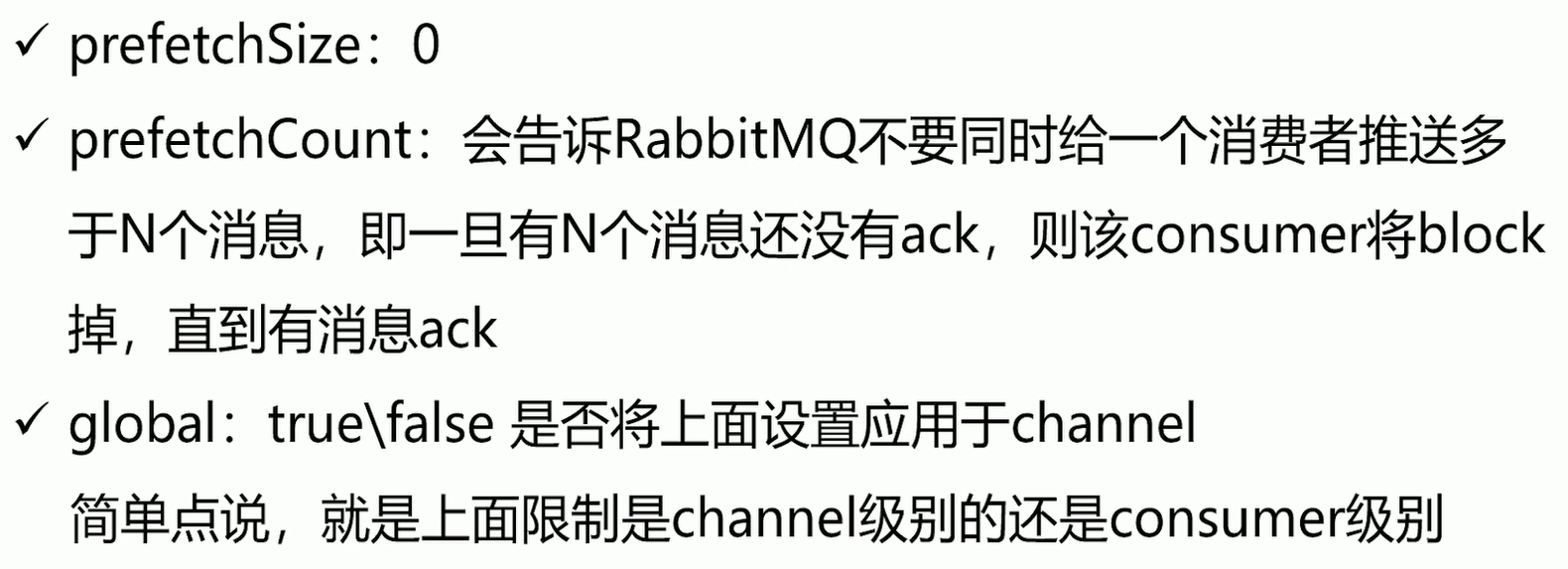

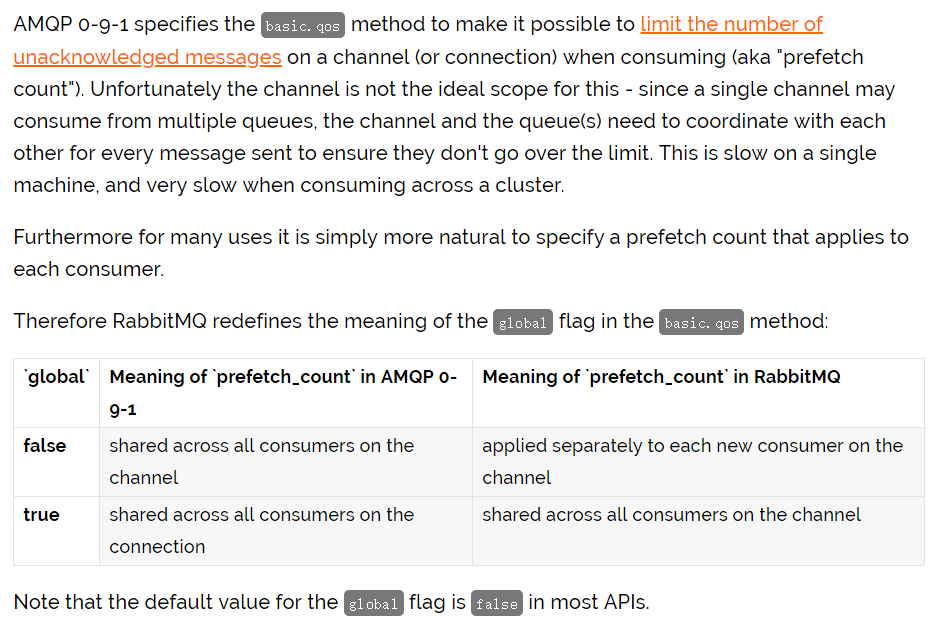

qos服务质量保证功能，基于consume或者channel设置qos值，在有一定数目消息未被确认之前，不会消费更多的消息，autoACK设置为false

no_ack = false才生效此功能

import com.rabbitmq.client.Channel;
import com.rabbitmq.client.Connection;
import com.rabbitmq.client.ConnectionFactory;
import com.rabbitmq.client.QueueingConsumer;
import com.rabbitmq.client.QueueingConsumer.Delivery;

public class Consumer {


    public static void main(String[] args) throws Exception {


        ConnectionFactory connectionFactory = new ConnectionFactory();
        connectionFactory.setHost("192.168.11.76");
        connectionFactory.setPort(5672);
        connectionFactory.setVirtualHost("/");

        Connection connection = connectionFactory.newConnection();
        Channel channel = connection.createChannel();


        String exchangeName = "test_qos_exchange";
        String queueName = "test_qos_queue";
        String routingKey = "qos.#";

        channel.exchangeDeclare(exchangeName, "topic", true, false, null);
        channel.queueDeclare(queueName, true, false, false, null);
        channel.queueBind(queueName, exchangeName, routingKey);

        //1 限流方式  第一件事就是 autoAck设置为 false

        channel.basicQos(0, 1, false);

        channel.basicConsume(queueName, false, new MyConsumer(channel));


    }
}

import java.io.IOException;

import com.rabbitmq.client.AMQP;
import com.rabbitmq.client.Channel;
import com.rabbitmq.client.DefaultConsumer;
import com.rabbitmq.client.Envelope;

public class MyConsumer extends DefaultConsumer {


    private Channel channel ;

    public MyConsumer(Channel channel) {
        super(channel);
        this.channel = channel;
    }

    @Override
    public void handleDelivery(String consumerTag, Envelope envelope, AMQP.BasicProperties properties, byte[] body) throws IOException {
        System.err.println("-----------consume message----------");
        System.err.println("consumerTag: " + consumerTag);
        System.err.println("envelope: " + envelope);
        System.err.println("properties: " + properties);
        System.err.println("body: " + new String(body));

        channel.basicAck(envelope.getDeliveryTag(), false);
        //doesn't support ack by batch
        //if we delete this ack function, the MQ will not send the next message because no ack get

    }
}

import com.rabbitmq.client.Channel;
import com.rabbitmq.client.Connection;
import com.rabbitmq.client.ConnectionFactory;

public class Producer {


    public static void main(String[] args) throws Exception {

        ConnectionFactory connectionFactory = new ConnectionFactory();
        connectionFactory.setHost("192.168.11.76");
        connectionFactory.setPort(5672);
        connectionFactory.setVirtualHost("/");

        Connection connection = connectionFactory.newConnection();
        Channel channel = connection.createChannel();

        String exchange = "test_qos_exchange";
        String routingKey = "qos.save";

        String msg = "Hello RabbitMQ QOS Message";

        for(int i =0; i<5; i ++){
            channel.basicPublish(exchange, routingKey, true, null, msg.getBytes());
        }
    }
}

消费端ACK和重回队列

消费端可手工ack or nack

重回队列：消费端没有处理成功的消息，重新发送给broker，一般关闭

import com.rabbitmq.client.Channel;
import com.rabbitmq.client.Connection;
import com.rabbitmq.client.ConnectionFactory;
import com.rabbitmq.client.QueueingConsumer;
import com.rabbitmq.client.QueueingConsumer.Delivery;

public class Consumer {


    public static void main(String[] args) throws Exception {


        ConnectionFactory connectionFactory = new ConnectionFactory();
        connectionFactory.setHost("192.168.11.76");
        connectionFactory.setPort(5672);
        connectionFactory.setVirtualHost("/");

        Connection connection = connectionFactory.newConnection();
        Channel channel = connection.createChannel();


        String exchangeName = "test_ack_exchange";
        String queueName = "test_ack_queue";
        String routingKey = "ack.#";

        channel.exchangeDeclare(exchangeName, "topic", true, false, null);
        channel.queueDeclare(queueName, true, false, false, null);
        channel.queueBind(queueName, exchangeName, routingKey);

        // 手工签收 必须要关闭 autoAck = false
        channel.basicConsume(queueName, false, new MyConsumer(channel));

    }
}

import java.io.IOException;

import com.rabbitmq.client.AMQP;
import com.rabbitmq.client.Channel;
import com.rabbitmq.client.DefaultConsumer;
import com.rabbitmq.client.Envelope;

public class MyConsumer extends DefaultConsumer {


    private Channel channel ;

    public MyConsumer(Channel channel) {
        super(channel);
        this.channel = channel;
    }

    @Override
    public void handleDelivery(String consumerTag, Envelope envelope, AMQP.BasicProperties properties, byte[] body) throws IOException {
        System.err.println("-----------consume message----------");
        System.err.println("body: " + new String(body));
        try {
            Thread.sleep(2000);
        } catch (InterruptedException e) {
            e.printStackTrace();
        }
        if((Integer)properties.getHeaders().get("num") == 0) {
            channel.basicNack(envelope.getDeliveryTag(), false, true);
        } else {
            channel.basicAck(envelope.getDeliveryTag(), false);
        }
    }
}

import java.util.HashMap;
import java.util.Map;

import com.rabbitmq.client.AMQP;
import com.rabbitmq.client.Channel;
import com.rabbitmq.client.Connection;
import com.rabbitmq.client.ConnectionFactory;

public class Producer {


    public static void main(String[] args) throws Exception {

        ConnectionFactory connectionFactory = new ConnectionFactory();
        connectionFactory.setHost("192.168.11.76");
        connectionFactory.setPort(5672);
        connectionFactory.setVirtualHost("/");

        Connection connection = connectionFactory.newConnection();
        Channel channel = connection.createChannel();

        String exchange = "test_ack_exchange";
        String routingKey = "ack.save";



        for(int i =0; i<5; i ++){

            Map<String, Object> headers = new HashMap<String, Object>();
            headers.put("num", i);

            AMQP.BasicProperties properties = new AMQP.BasicProperties.Builder()
                    .deliveryMode(2)
                    .contentEncoding("UTF-8")
                    .headers(headers)
                    .build();
            String msg = "Hello RabbitMQ ACK Message " + i;
            channel.basicPublish(exchange, routingKey, true, properties, msg.getBytes());
        }
    }
}

TTL队列/消息

time to live 生存时间

入队开始计算，超时消息自动清除

可以设置队列挥着消息本身的TTL

AMQP.BasicProperties properties = new AMQP.BasicProperties.Builder()
                .deliveryMode(2)//durable
                .contentEncoding("UTF-8")//encoding
                .expiration("10000")
                .headers(headers)
                .build();

死信队列

DLX:dead-letter-exchange

当消息在队列中变成死信以后，重新publish到另外一个exchange，这个exchange就是DLX

死信情况：

1、消息被拒绝（basic.reject/basic.nack），requeue为false

2、TTL过期

3、队列达到最大长度

使用方法：

1、首先需要设置死信交换机和队列

2、正常声明交换机、队列、绑定，需要额外参数arguments.put(“x-dead-letter-exchange”,”dlx.exchange”);

注意，arguments设置在普通队列上来指定去往哪个死信队列

3、满足条件的消息直接被路由到DLX

import java.util.HashMap;
import java.util.Map;

import com.rabbitmq.client.Channel;
import com.rabbitmq.client.Connection;
import com.rabbitmq.client.ConnectionFactory;
import com.rabbitmq.client.QueueingConsumer;
import com.rabbitmq.client.QueueingConsumer.Delivery;

public class Consumer {


    public static void main(String[] args) throws Exception {


        ConnectionFactory connectionFactory = new ConnectionFactory();
        connectionFactory.setHost("192.168.11.76");
        connectionFactory.setPort(5672);
        connectionFactory.setVirtualHost("/");

        Connection connection = connectionFactory.newConnection();
        Channel channel = connection.createChannel();

        // 这就是一个普通的交换机 和 队列 以及路由
        String exchangeName = "test_dlx_exchange";
        String routingKey = "dlx.#";
        String queueName = "test_dlx_queue";

        channel.exchangeDeclare(exchangeName, "topic", true, false, null);

        Map<String, Object> agruments = new HashMap<String, Object>();
        agruments.put("x-dead-letter-exchange", "dlx.exchange");
        //这个agruments属性，要设置到声明队列上
        channel.queueDeclare(queueName, true, false, false, agruments);
        channel.queueBind(queueName, exchangeName, routingKey);

        //要进行死信队列的声明:
        channel.exchangeDeclare("dlx.exchange", "topic", true, false, null);
        channel.queueDeclare("dlx.queue", true, false, false, null);
        channel.queueBind("dlx.queue", "dlx.exchange", "#");

        channel.basicConsume(queueName, true, new MyConsumer(channel));
    }
}

import java.io.IOException;

import com.rabbitmq.client.AMQP;
import com.rabbitmq.client.Channel;
import com.rabbitmq.client.DefaultConsumer;
import com.rabbitmq.client.Envelope;

public class MyConsumer extends DefaultConsumer {


    public MyConsumer(Channel channel) {
        super(channel);
    }

    @Override
    public void handleDelivery(String consumerTag, Envelope envelope, AMQP.BasicProperties properties, byte[] body) throws IOException {
        System.err.println("-----------consume message----------");
        System.err.println("consumerTag: " + consumerTag);
        System.err.println("envelope: " + envelope);
        System.err.println("properties: " + properties);
        System.err.println("body: " + new String(body));
    }
}

import com.rabbitmq.client.AMQP;
import com.rabbitmq.client.Channel;
import com.rabbitmq.client.Connection;
import com.rabbitmq.client.ConnectionFactory;

public class Producer {


    public static void main(String[] args) throws Exception {

        ConnectionFactory connectionFactory = new ConnectionFactory();
        connectionFactory.setHost("192.168.11.76");
        connectionFactory.setPort(5672);
        connectionFactory.setVirtualHost("/");

        Connection connection = connectionFactory.newConnection();
        Channel channel = connection.createChannel();

        String exchange = "test_dlx_exchange";
        String routingKey = "dlx.save";

        String msg = "Hello RabbitMQ DLX Message";

        for(int i =0; i<1; i ++){

            AMQP.BasicProperties properties = new AMQP.BasicProperties.Builder()
                    .deliveryMode(2)
                    .contentEncoding("UTF-8")
                    .expiration("10000")
                    .build();
            channel.basicPublish(exchange, routingKey, true, properties, msg.getBytes());
        }
    }
}
