SpringAMQP & RabbitMQ

2019-06-07

study note

Word count: 5.1k | Reading time≈ 27 min

am1

Spring整合

RabbitAdmin

可在spring中直接注入，方便操作rabbitmq

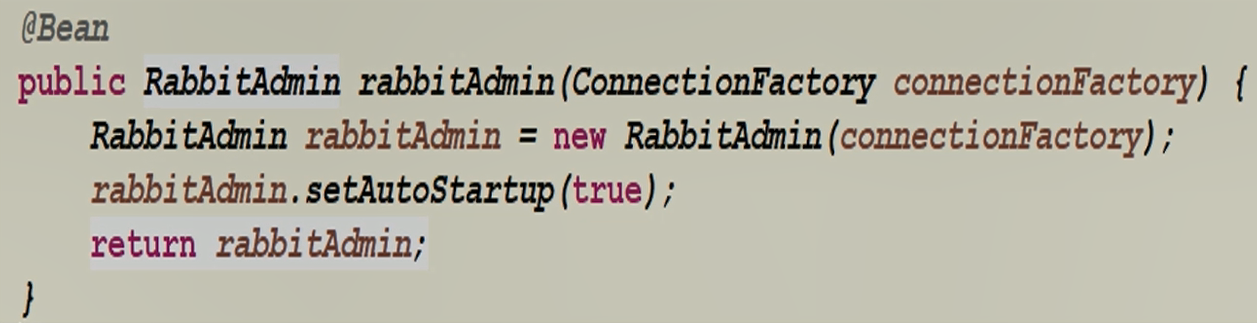

am2

前提：autoStartup必须为true，否择spring容器不加载rabbitadmin类

本质是获取spring容器中exchange，binding，routingkey，queue的@Bean声明

之后调用RabbitTemplate的execute方法执行一系列（声明，修改，删除）的rabbitmq基本操作

1、添加依赖

        <dependency>
            <groupId>com.rabbitmq</groupId>
            <artifactId>amqp-client</artifactId>
            <version>3.6.5</version>
        </dependency>
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-amqp</artifactId>
        </dependency>

2、创建config类

@Configuration
@ComponentScan({"com.bfxy.spring.*"})
public class RabbitMQConfig {

    @Bean
    public ConnectionFactory connectionFactory(){
        CachingConnectionFactory connectionFactory = new CachingConnectionFactory();
        connectionFactory.setAddresses("192.168.11.76:5672");
        connectionFactory.setUsername("guest");
        connectionFactory.setPassword("guest");
        connectionFactory.setVirtualHost("/");
        return connectionFactory;
    }

    @Bean
    public RabbitAdmin rabbitAdmin(ConnectionFactory connectionFactory) {
        RabbitAdmin rabbitAdmin = new RabbitAdmin(connectionFactory);
        rabbitAdmin.setAutoStartup(true);
        return rabbitAdmin;
    }
}

3、测试使用

@RunWith(SpringRunner.class)
@SpringBootTest
public class ApplicationTests {

    @Test
    public void contextLoads() {
    }

    @Autowired
    private RabbitAdmin rabbitAdmin;

    @Test
    public void testAdmin() throws Exception {
        rabbitAdmin.declareExchange(new DirectExchange("test.direct", false, false));

        rabbitAdmin.declareExchange(new TopicExchange("test.topic", false, false));

        rabbitAdmin.declareExchange(new FanoutExchange("test.fanout", false, false));

        rabbitAdmin.declareQueue(new Queue("test.direct.queue", false));

        rabbitAdmin.declareQueue(new Queue("test.topic.queue", false));

        rabbitAdmin.declareQueue(new Queue("test.fanout.queue", false));

        rabbitAdmin.declareBinding(new Binding("test.direct.queue",
                Binding.DestinationType.QUEUE,
                "test.direct", "direct", new HashMap<>()));

        rabbitAdmin.declareBinding(
                BindingBuilder
                .bind(new Queue("test.topic.queue", false))        //直接创建队列
                .to(new TopicExchange("test.topic", false, false))    //直接创建交换机 建立关联关系
                .with("user.#"));    //指定路由Key


        rabbitAdmin.declareBinding(
                BindingBuilder
                .bind(new Queue("test.fanout.queue", false))
                .to(new FanoutExchange("test.fanout", false, false)));

        //清空队列数据
        rabbitAdmin.purgeQueue("test.topic.queue", false);
    }

SpringAMQP声明

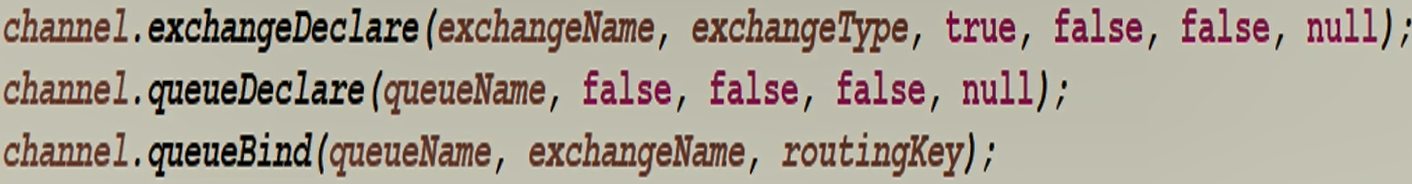

原始rabbitmq api声明：

am4

SpringAMQP采用@Bean方式声明

@Configuration
@ComponentScan({"com.bfxy.spring.*"})
public class RabbitMQConfig {

    @Bean
    public ConnectionFactory connectionFactory(){
        CachingConnectionFactory connectionFactory = new CachingConnectionFactory();
        connectionFactory.setAddresses("192.168.11.76:5672");
        connectionFactory.setUsername("guest");
        connectionFactory.setPassword("guest");
        connectionFactory.setVirtualHost("/");
        return connectionFactory;
    }

    @Bean
    public RabbitAdmin rabbitAdmin(ConnectionFactory connectionFactory) {
        RabbitAdmin rabbitAdmin = new RabbitAdmin(connectionFactory);
        rabbitAdmin.setAutoStartup(true);
        return rabbitAdmin;
    }

    /**
     * 针对消费者配置
     * 1. 设置交换机类型
     * 2. 将队列绑定到交换机
        FanoutExchange: 将消息分发到所有的绑定队列，无routingkey的概念
        HeadersExchange ：通过添加属性key-value匹配
        DirectExchange:按照routingkey分发到指定队列
        TopicExchange:多关键字匹配
     */
    @Bean
    public TopicExchange exchange001() {
        return new TopicExchange("topic001", true, false);
    }

    @Bean
    public Queue queue001() {
        return new Queue("queue001", true); //队列持久
    }

    @Bean
    public Binding binding001() {
        return BindingBuilder.bind(queue001()).to(exchange001()).with("spring.*");
    }

    @Bean
    public TopicExchange exchange002() {
        return new TopicExchange("topic002", true, false);
    }

    @Bean
    public Queue queue002() {
        return new Queue("queue002", true); //队列持久
    }

    @Bean
    public Binding binding002() {
        return BindingBuilder.bind(queue002()).to(exchange002()).with("rabbit.*");
    }

    @Bean
    public Queue queue003() {
        return new Queue("queue003", true); //队列持久
    }

    @Bean
    public Binding binding003() {
        return BindingBuilder.bind(queue003()).to(exchange001()).with("mq.*");
    }

    @Bean
    public Queue queue_image() {
        return new Queue("image_queue", true); //队列持久
    }

    @Bean
    public Queue queue_pdf() {
        return new Queue("pdf_queue", true); //队列持久
    }

RabbitTemplate

发送消息的关键类，注入到spring容器中直接使用

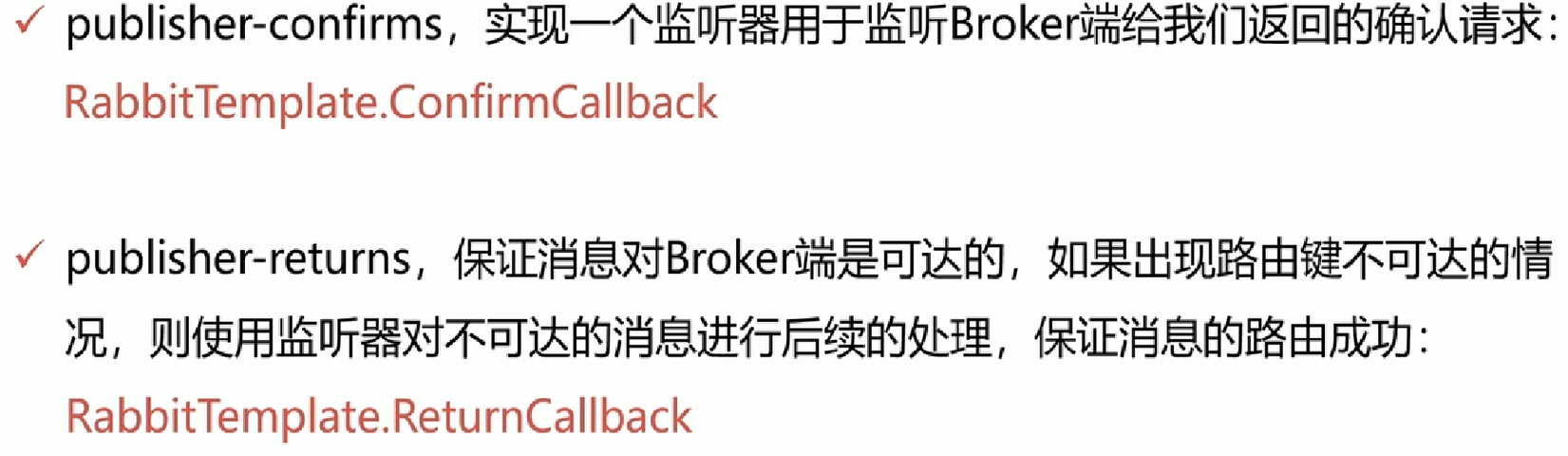

包括了可靠性投递消息、回调监听消息ConfirmCallback()、返回值确认接口ReturnCallback()

在config里注入

@Configuration
@ComponentScan({"com.bfxy.spring.*"})
public class RabbitMQConfig {

    @Bean
    public ConnectionFactory connectionFactory(){
        CachingConnectionFactory connectionFactory = new CachingConnectionFactory();
        connectionFactory.setAddresses("192.168.11.76:5672");
        connectionFactory.setUsername("guest");
        connectionFactory.setPassword("guest");
        connectionFactory.setVirtualHost("/");
        return connectionFactory;
    }

    @Bean
    public RabbitAdmin rabbitAdmin(ConnectionFactory connectionFactory) {
        RabbitAdmin rabbitAdmin = new RabbitAdmin(connectionFactory);
        rabbitAdmin.setAutoStartup(true);
        return rabbitAdmin;
    }

    @Bean
    public RabbitTemplate rabbitTemplate(ConnectionFactory connectionFactory) {
        RabbitTemplate rabbitTemplate = new RabbitTemplate(connectionFactory);
        return rabbitTemplate;
    }

调用template方法

    @Autowired
    private RabbitTemplate rabbitTemplate;


    @Test
    public void testSendMessage() throws Exception {
        //1 创建消息
        MessageProperties messageProperties = new MessageProperties();
        messageProperties.getHeaders().put("desc", "信息描述..");
        messageProperties.getHeaders().put("type", "自定义消息类型..");
        Message message = new Message("Hello RabbitMQ".getBytes(), messageProperties);

        rabbitTemplate.convertAndSend("topic001", "spring.amqp", message, new MessagePostProcessor() {
            @Override
            public Message postProcessMessage(Message message) throws AmqpException {
                System.err.println("------添加额外的设置---------");
                message.getMessageProperties().getHeaders().put("desc", "额外修改的信息描述");
                message.getMessageProperties().getHeaders().put("attr", "额外新加的属性");
                return message;
            }
        });
    }

直接发送消息，不做配置

@Test
    public void testSendMessage2() throws Exception {
        //1 创建消息
        MessageProperties messageProperties = new MessageProperties();
        messageProperties.setContentType("text/plain");
        Message message = new Message("mq 消息1234".getBytes(), messageProperties);

        rabbitTemplate.send("topic001", "spring.abc", message);

        rabbitTemplate.convertAndSend("topic001", "spring.amqp", "hello object message send!");
        rabbitTemplate.convertAndSend("topic002", "rabbit.abc", "hello object message send!");
    }

SimpleMessageListenerContainer

监听队列的强大类，可以动态设置

设置事务及其特性
设置消费者数量、批量消费等
设置消息确认、自动确认、是否重回队列、异常捕获handler等
设置消费者标签生成、独占模式消费者属性
设置具体的监听器、消息转换器

config中注入

@Bean
    public SimpleMessageListenerContainer messageContainer(ConnectionFactory connectionFactory) {

        SimpleMessageListenerContainer container = new SimpleMessageListenerContainer(connectionFactory);
        container.setQueues(queue001(), queue002(), queue003(), queue_image(), queue_pdf());
        container.setConcurrentConsumers(1);
        container.setMaxConcurrentConsumers(5);
        container.setDefaultRequeueRejected(false);
        container.setAcknowledgeMode(AcknowledgeMode.AUTO);
        container.setExposeListenerChannel(true);
        container.setConsumerTagStrategy(new ConsumerTagStrategy() {
            @Override
            public String createConsumerTag(String queue) {
                return queue + "_" + UUID.randomUUID().toString();
            }
        });

        container.setMessageListener(new ChannelAwareMessageListener() {
            @Override
            public void onMessage(Message message, Channel channel) throws Exception {
                String msg = new String(message.getBody());
                System.err.println("----------消费者: " + msg);
            }
        });
        return container;
    }

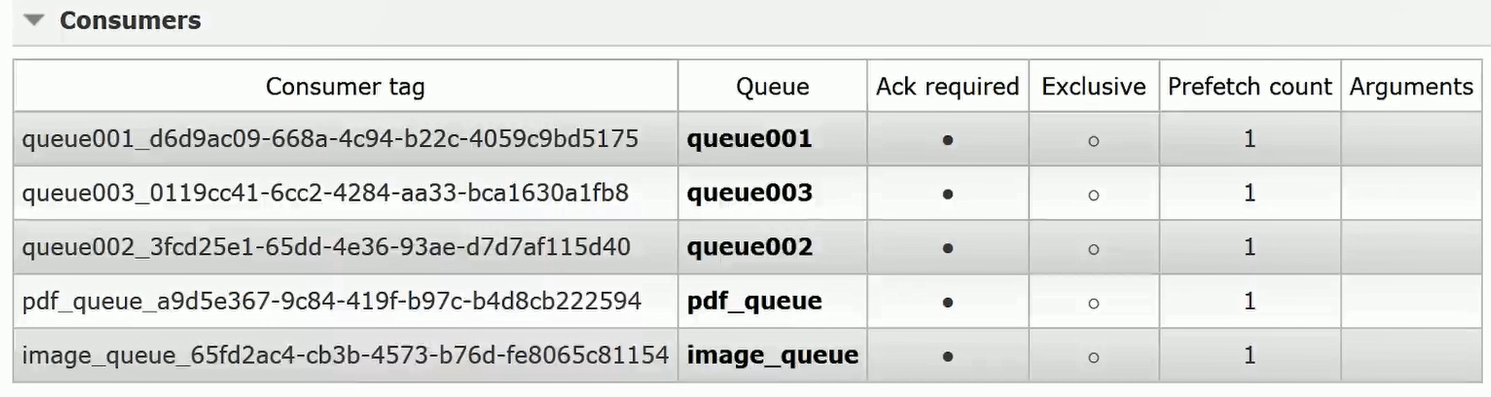

am5

mq6

MessageListenerAdapter

config中注入

@Bean
    public SimpleMessageListenerContainer messageContainer(ConnectionFactory connectionFactory) {

        SimpleMessageListenerContainer container = new SimpleMessageListenerContainer(connectionFactory);
        container.setQueues(queue001(), queue002(), queue003(), queue_image(), queue_pdf());
        container.setConcurrentConsumers(1);
        container.setMaxConcurrentConsumers(5);
        container.setDefaultRequeueRejected(false);
        container.setAcknowledgeMode(AcknowledgeMode.AUTO);
        container.setExposeListenerChannel(true);
        container.setConsumerTagStrategy(new ConsumerTagStrategy() {
            @Override
            public String createConsumerTag(String queue) {
                return queue + "_" + UUID.randomUUID().toString();
            }
        });
        /**
        container.setMessageListener(new ChannelAwareMessageListener() {
            @Override
            public void onMessage(Message message, Channel channel) throws Exception {
                String msg = new String(message.getBody());
                System.err.println("----------消费者: " + msg);
            }
        });
        */

        // 1 适配器方式. 默认是有自己的方法名字的：handleMessage
            // 可以自己指定一个方法的名字: consumeMessage
            // 也可以添加一个转换器: 从字节数组转换为String
        MessageListenerAdapter adapter = new MessageListenerAdapter(new MessageDelegate());
        adapter.setDefaultListenerMethod("consumeMessage");
        adapter.setMessageConverter(new TextMessageConverter());
        container.setMessageListener(adapter);

        return container;
    }

创建自己的适配器

import java.io.File;
import java.util.Map;
public class MessageDelegate {

    public void handleMessage(byte[] messageBody) {
        System.err.println("默认方法, 消息内容:" + new String(messageBody));
    }

    /**

    public void consumeMessage(byte[] messageBody) {
        System.err.println("字节数组方法, 消息内容:" + new String(messageBody));
    }

    public void consumeMessage(String messageBody) {
        System.err.println("字符串方法, 消息内容:" + messageBody);
    }
    */
}

convert类

import org.springframework.amqp.core.Message;
import org.springframework.amqp.core.MessageProperties;
import org.springframework.amqp.support.converter.MessageConversionException;
import org.springframework.amqp.support.converter.MessageConverter;

public class TextMessageConverter implements MessageConverter {

    @Override
    public Message toMessage(Object object, MessageProperties messageProperties) throws MessageConversionException {
        return new Message(object.toString().getBytes(), messageProperties);
    }

    @Override
    public Object fromMessage(Message message) throws MessageConversionException {
        String contentType = message.getMessageProperties().getContentType();
        if(null != contentType && contentType.contains("text")) {
            return new String(message.getBody());
        }
        return message.getBody();
    }
}

发送消息

@Test
    public void testSendMessage4Text() throws Exception {
        //1 创建消息
        MessageProperties messageProperties = new MessageProperties();
        messageProperties.setContentType("text/plain");
        Message message = new Message("mq 消息1234".getBytes(), messageProperties);

        rabbitTemplate.send("topic001", "spring.abc", message);
        rabbitTemplate.send("topic002", "rabbit.abc", message);
    }

队列名称和方法名称一一匹配

/**
     2 适配器方式: 我们的队列名称 和 方法名称 也可以进行一一的匹配
         */
        MessageListenerAdapter adapter = new MessageListenerAdapter(new MessageDelegate());
        adapter.setMessageConverter(new TextMessageConverter());
        Map<String, String> queueOrTagToMethodName = new HashMap<>();
        queueOrTagToMethodName.put("queue001", "method1");
        queueOrTagToMethodName.put("queue002", "method2");
        adapter.setQueueOrTagToMethodName(queueOrTagToMethodName);
        container.setMessageListener(adapter);

MessageDelegate

import java.io.File;
import java.util.Map;
public class MessageDelegate {

    public void handleMessage(byte[] messageBody) {
        System.err.println("默认方法, 消息内容:" + new String(messageBody));
    }

    public void method1(String messageBody) {
        System.err.println("method1 收到消息内容:" + new String(messageBody));
    }

    public void method2(String messageBody) {
        System.err.println("method2 收到消息内容:" + new String(messageBody));
    }
}

MessageConverter

正常消息为二进制传输，如果需要转换，则使用转换器

创建转换器，重写方法

ImageMessageConverter

import java.io.ByteArrayInputStream;
import java.io.File;
import java.io.IOException;
import java.nio.file.Files;
import java.util.UUID;

import org.springframework.amqp.core.Message;
import org.springframework.amqp.core.MessageProperties;
import org.springframework.amqp.support.converter.MessageConversionException;
import org.springframework.amqp.support.converter.MessageConverter;

public class ImageMessageConverter implements MessageConverter {

    @Override
    public Message toMessage(Object object, MessageProperties messageProperties) throws MessageConversionException {
        throw new MessageConversionException(" convert error ! ");
    }

    @Override
    public Object fromMessage(Message message) throws MessageConversionException {
        System.err.println("-----------Image MessageConverter----------");

        Object _extName = message.getMessageProperties().getHeaders().get("extName");
        String extName = _extName == null ? "png" : _extName.toString();

        byte[] body = message.getBody();
        String fileName = UUID.randomUUID().toString();
        String path = "d:/010_test/" + fileName + "." + extName;
        File f = new File(path);
        try {
            Files.copy(new ByteArrayInputStream(body), f.toPath());
        } catch (IOException e) {
            e.printStackTrace();
        }
        return f;
    }
}

PDFMessageConverter

import java.io.ByteArrayInputStream;
import java.io.File;
import java.io.IOException;
import java.nio.file.Files;
import java.util.UUID;

import org.springframework.amqp.core.Message;
import org.springframework.amqp.core.MessageProperties;
import org.springframework.amqp.support.converter.MessageConversionException;
import org.springframework.amqp.support.converter.MessageConverter;

public class PDFMessageConverter implements MessageConverter {

    @Override
    public Message toMessage(Object object, MessageProperties messageProperties) throws MessageConversionException {
        throw new MessageConversionException(" convert error ! ");
    }

    @Override
    public Object fromMessage(Message message) throws MessageConversionException {
        System.err.println("-----------PDF MessageConverter----------");

        byte[] body = message.getBody();
        String fileName = UUID.randomUUID().toString();
        String path = "d:/010_test/" + fileName + ".pdf";
        File f = new File(path);
        try {
            Files.copy(new ByteArrayInputStream(body), f.toPath());
        } catch (IOException e) {
            e.printStackTrace();
        }
        return f;
    }

}

创建两个实体类

package com.bfxy.spring.entity;

public class Order {

    private String id;

    private String name;

    private String content;

    public Order() {
    }

    public Order(String id, String name, String content) {
        this.id = id;
        this.name = name;
        this.content = content;
    }

    public String getId() {
        return id;
    }

    public void setId(String id) {
        this.id = id;
    }

    public String getName() {
        return name;
    }

    public void setName(String name) {
        this.name = name;
    }

    public String getContent() {
        return content;
    }

    public void setContent(String content) {
        this.content = content;
    }

}

package com.bfxy.spring.entity;

public class Packaged {

    private String id;

    private String name;

    private String description;

    public Packaged() {
    }

    public Packaged(String id, String name, String description) {
        this.id = id;
        this.name = name;
        this.description = description;
    }

    public String getId() {
        return id;
    }

    public void setId(String id) {
        this.id = id;
    }

    public String getName() {
        return name;
    }

    public void setName(String name) {
        this.name = name;
    }

    public String getDescription() {
        return description;
    }

    public void setDescription(String description) {
        this.description = description;
    }

}

config中，使用转换器

@Bean
    public SimpleMessageListenerContainer messageContainer(ConnectionFactory connectionFactory) {

        SimpleMessageListenerContainer container = new SimpleMessageListenerContainer(connectionFactory);
        container.setQueues(queue001(), queue002(), queue003(), queue_image(), queue_pdf());
        container.setConcurrentConsumers(1);
        container.setMaxConcurrentConsumers(5);
        container.setDefaultRequeueRejected(false);
        container.setAcknowledgeMode(AcknowledgeMode.AUTO);
        container.setExposeListenerChannel(true);
        container.setConsumerTagStrategy(new ConsumerTagStrategy() {
            @Override
            public String createConsumerTag(String queue) {
                return queue + "_" + UUID.randomUUID().toString();
            }
        });
        /**
         * 1 适配器方式. 默认是有自己的方法名字的：handleMessage
            // 可以自己指定一个方法的名字: consumeMessage
            // 也可以添加一个转换器: 从字节数组转换为String
        MessageListenerAdapter adapter = new MessageListenerAdapter(new MessageDelegate());
        adapter.setDefaultListenerMethod("consumeMessage");
        adapter.setMessageConverter(new TextMessageConverter());
        container.setMessageListener(adapter);
        */

        /**
         * 2 适配器方式: 我们的队列名称 和 方法名称 也可以进行一一的匹配
         *
        MessageListenerAdapter adapter = new MessageListenerAdapter(new MessageDelegate());
        adapter.setMessageConverter(new TextMessageConverter());
        Map<String, String> queueOrTagToMethodName = new HashMap<>();
        queueOrTagToMethodName.put("queue001", "method1");
        queueOrTagToMethodName.put("queue002", "method2");
        adapter.setQueueOrTagToMethodName(queueOrTagToMethodName);
        container.setMessageListener(adapter);
        */

        // 1.1 支持json格式的转换器
        /**
        MessageListenerAdapter adapter = new MessageListenerAdapter(new MessageDelegate());
        adapter.setDefaultListenerMethod("consumeMessage");

        Jackson2JsonMessageConverter jackson2JsonMessageConverter = new Jackson2JsonMessageConverter();
        adapter.setMessageConverter(jackson2JsonMessageConverter);

        container.setMessageListener(adapter);
        */



        // 1.2 DefaultJackson2JavaTypeMapper & Jackson2JsonMessageConverter 支持java对象转换
        /**
        MessageListenerAdapter adapter = new MessageListenerAdapter(new MessageDelegate());
        adapter.setDefaultListenerMethod("consumeMessage");

        Jackson2JsonMessageConverter jackson2JsonMessageConverter = new Jackson2JsonMessageConverter();

        DefaultJackson2JavaTypeMapper javaTypeMapper = new DefaultJackson2JavaTypeMapper();
        jackson2JsonMessageConverter.setJavaTypeMapper(javaTypeMapper);

        adapter.setMessageConverter(jackson2JsonMessageConverter);
        container.setMessageListener(adapter);
        */


        //1.3 DefaultJackson2JavaTypeMapper & Jackson2JsonMessageConverter 支持java对象多映射转换
        /**
        MessageListenerAdapter adapter = new MessageListenerAdapter(new MessageDelegate());
        adapter.setDefaultListenerMethod("consumeMessage");
        Jackson2JsonMessageConverter jackson2JsonMessageConverter = new Jackson2JsonMessageConverter();
        DefaultJackson2JavaTypeMapper javaTypeMapper = new DefaultJackson2JavaTypeMapper();

        Map<String, Class<?>> idClassMapping = new HashMap<String, Class<?>>();
        idClassMapping.put("order", com.bfxy.spring.entity.Order.class);
        idClassMapping.put("packaged", com.bfxy.spring.entity.Packaged.class);

        javaTypeMapper.setIdClassMapping(idClassMapping);

        jackson2JsonMessageConverter.setJavaTypeMapper(javaTypeMapper);
        adapter.setMessageConverter(jackson2JsonMessageConverter);
        container.setMessageListener(adapter);
        */

        //1.4 ext convert

        MessageListenerAdapter adapter = new MessageListenerAdapter(new MessageDelegate());
        adapter.setDefaultListenerMethod("consumeMessage");

        //全局的转换器:
        //集合多种转换器
        ContentTypeDelegatingMessageConverter convert = new ContentTypeDelegatingMessageConverter();

        TextMessageConverter textConvert = new TextMessageConverter();
        convert.addDelegate("text", textConvert);
        convert.addDelegate("html/text", textConvert);
        convert.addDelegate("xml/text", textConvert);
        convert.addDelegate("text/plain", textConvert);

        Jackson2JsonMessageConverter jsonConvert = new Jackson2JsonMessageConverter();
        convert.addDelegate("json", jsonConvert);
        convert.addDelegate("application/json", jsonConvert);

        ImageMessageConverter imageConverter = new ImageMessageConverter();
        convert.addDelegate("image/png", imageConverter);
        convert.addDelegate("image", imageConverter);

        PDFMessageConverter pdfConverter = new PDFMessageConverter();
        convert.addDelegate("application/pdf", pdfConverter);


        adapter.setMessageConverter(convert);
        container.setMessageListener(adapter);

        return container;

    }

MessageDelegate

public class MessageDelegate {
    public void consumeMessage(Map messageBody) {
        System.err.println("map方法, 消息内容:" + messageBody);
    }


    public void consumeMessage(Order order) {
        System.err.println("order对象, 消息内容, id: " + order.getId() +
                ", name: " + order.getName() +
                ", content: "+ order.getContent());
    }

    public void consumeMessage(Packaged pack) {
        System.err.println("package对象, 消息内容, id: " + pack.getId() +
                ", name: " + pack.getName() +
                ", content: "+ pack.getDescription());
    }

    public void consumeMessage(File file) {
        System.err.println("文件对象 方法, 消息内容:" + file.getName());
    }
}

测试方法

@Test
    public void testSendJsonMessage() throws Exception {

        Order order = new Order();
        order.setId("001");
        order.setName("消息订单");
        order.setContent("描述信息");
        ObjectMapper mapper = new ObjectMapper();
        String json = mapper.writeValueAsString(order);
        System.err.println("order 4 json: " + json);

        MessageProperties messageProperties = new MessageProperties();
        //这里注意一定要修改contentType为 application/json
        messageProperties.setContentType("application/json");
        Message message = new Message(json.getBytes(), messageProperties);

        rabbitTemplate.send("topic001", "spring.order", message);
    }

    @Test
    public void testSendJavaMessage() throws Exception {

        Order order = new Order();
        order.setId("001");
        order.setName("订单消息");
        order.setContent("订单描述信息");
        ObjectMapper mapper = new ObjectMapper();
        String json = mapper.writeValueAsString(order);
        System.err.println("order 4 json: " + json);

        MessageProperties messageProperties = new MessageProperties();
        //这里注意一定要修改contentType为 application/json
        messageProperties.setContentType("application/json");
        messageProperties.getHeaders().put("__TypeId__", "com.bfxy.spring.entity.Order");
        Message message = new Message(json.getBytes(), messageProperties);

        rabbitTemplate.send("topic001", "spring.order", message);
    }

    @Test
    public void testSendMappingMessage() throws Exception {

        ObjectMapper mapper = new ObjectMapper();

        Order order = new Order();
        order.setId("001");
        order.setName("订单消息");
        order.setContent("订单描述信息");

        String json1 = mapper.writeValueAsString(order);
        System.err.println("order 4 json: " + json1);

        MessageProperties messageProperties1 = new MessageProperties();
        //这里注意一定要修改contentType为 application/json
        messageProperties1.setContentType("application/json");
        messageProperties1.getHeaders().put("__TypeId__", "order");
        Message message1 = new Message(json1.getBytes(), messageProperties1);
        rabbitTemplate.send("topic001", "spring.order", message1);

        Packaged pack = new Packaged();
        pack.setId("002");
        pack.setName("包裹消息");
        pack.setDescription("包裹描述信息");

        String json2 = mapper.writeValueAsString(pack);
        System.err.println("pack 4 json: " + json2);

        MessageProperties messageProperties2 = new MessageProperties();
        //这里注意一定要修改contentType为 application/json
        messageProperties2.setContentType("application/json");
        messageProperties2.getHeaders().put("__TypeId__", "packaged");
        Message message2 = new Message(json2.getBytes(), messageProperties2);
        rabbitTemplate.send("topic001", "spring.pack", message2);
    }

    @Test
    public void testSendExtConverterMessage() throws Exception {
//            byte[] body = Files.readAllBytes(Paths.get("d:/002_books", "picture.png"));
//            MessageProperties messageProperties = new MessageProperties();
//            messageProperties.setContentType("image/png");
//            messageProperties.getHeaders().put("extName", "png");
        //在header中分类
//            Message message = new Message(body, messageProperties);
//            rabbitTemplate.send("", "image_queue", message);

            byte[] body = Files.readAllBytes(Paths.get("d:/002_books", "mysql.pdf"));
            MessageProperties messageProperties = new MessageProperties();
            messageProperties.setContentType("application/pdf");
            Message message = new Message(body, messageProperties);
            rabbitTemplate.send("", "pdf_queue", message);
    }

Springboot整合

mq7

producer

import java.util.Map;

import org.springframework.amqp.rabbit.core.RabbitTemplate;
import org.springframework.amqp.rabbit.core.RabbitTemplate.ConfirmCallback;
import org.springframework.amqp.rabbit.core.RabbitTemplate.ReturnCallback;
import org.springframework.amqp.rabbit.support.CorrelationData;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.messaging.Message;
import org.springframework.messaging.MessageHeaders;
import org.springframework.messaging.support.MessageBuilder;
import org.springframework.stereotype.Component;

import com.bfxy.springboot.entity.Order;

@Component
public class RabbitSender {

    //自动注入RabbitTemplate模板类
    @Autowired
    private RabbitTemplate rabbitTemplate;

    //回调函数: confirm确认
    final ConfirmCallback confirmCallback = new RabbitTemplate.ConfirmCallback() {
        @Override
        public void confirm(CorrelationData correlationData, boolean ack, String cause) {
            System.err.println("correlationData: " + correlationData);
            System.err.println("ack: " + ack);
            if(!ack){
                System.err.println("异常处理....");
            }
        }
    };

    //回调函数: return返回
    final ReturnCallback returnCallback = new RabbitTemplate.ReturnCallback() {
        @Override
        public void returnedMessage(org.springframework.amqp.core.Message message, int replyCode, String replyText,
                String exchange, String routingKey) {
            System.err.println("return exchange: " + exchange + ", routingKey: "
                + routingKey + ", replyCode: " + replyCode + ", replyText: " + replyText);
        }
    };

    //发送消息方法调用: 构建Message消息
    public void send(Object message, Map<String, Object> properties) throws Exception {
        MessageHeaders mhs = new MessageHeaders(properties);
        Message msg = MessageBuilder.createMessage(message, mhs);
        rabbitTemplate.setConfirmCallback(confirmCallback);
        rabbitTemplate.setReturnCallback(returnCallback);
        //id + 时间戳 全局唯一
        CorrelationData correlationData = new CorrelationData("1234567890");
        rabbitTemplate.convertAndSend("exchange-1", "springboot.abc", msg, correlationData);
    }

    //发送消息方法调用: 构建自定义对象消息
    public void sendOrder(Order order) throws Exception {
        rabbitTemplate.setConfirmCallback(confirmCallback);
        rabbitTemplate.setReturnCallback(returnCallback);
        //id + 时间戳 全局唯一
        CorrelationData correlationData = new CorrelationData("0987654321");
        rabbitTemplate.convertAndSend("exchange-2", "springboot.def", order, correlationData);
    }

}

consumer

import java.util.Map;

import org.springframework.amqp.rabbit.annotation.Exchange;
import org.springframework.amqp.rabbit.annotation.Queue;
import org.springframework.amqp.rabbit.annotation.QueueBinding;
import org.springframework.amqp.rabbit.annotation.RabbitHandler;
import org.springframework.amqp.rabbit.annotation.RabbitListener;
import org.springframework.amqp.support.AmqpHeaders;
import org.springframework.messaging.Message;
import org.springframework.messaging.handler.annotation.Headers;
import org.springframework.messaging.handler.annotation.Payload;
import org.springframework.stereotype.Component;

import com.rabbitmq.client.Channel;

@Component
public class RabbitReceiver {


    @RabbitListener(bindings = @QueueBinding(
            value = @Queue(value = "queue-1",
            durable="true"),
            exchange = @Exchange(value = "exchange-1",
            durable="true",
            type= "topic",
            ignoreDeclarationExceptions = "true"),
            key = "springboot.*"
            )
    )
    @RabbitHandler
    public void onMessage(Message message, Channel channel) throws Exception {
        System.err.println("--------------------------------------");
        System.err.println("消费端Payload: " + message.getPayload());
        Long deliveryTag = (Long)message.getHeaders().get(AmqpHeaders.DELIVERY_TAG);
        //手工ACK
        channel.basicAck(deliveryTag, false);
    }


    /**
     *
     *     spring.rabbitmq.listener.order.queue.name=queue-2
        spring.rabbitmq.listener.order.queue.durable=true
        spring.rabbitmq.listener.order.exchange.name=exchange-1
        spring.rabbitmq.listener.order.exchange.durable=true
        spring.rabbitmq.listener.order.exchange.type=topic
        spring.rabbitmq.listener.order.exchange.ignoreDeclarationExceptions=true
        spring.rabbitmq.listener.order.key=springboot.*
     * @param order
     * @param channel
     * @param headers
     * @throws Exception
     */
    @RabbitListener(bindings = @QueueBinding(
            value = @Queue(value = "${spring.rabbitmq.listener.order.queue.name}",
            durable="${spring.rabbitmq.listener.order.queue.durable}"),
            exchange = @Exchange(value = "${spring.rabbitmq.listener.order.exchange.name}",
            durable="${spring.rabbitmq.listener.order.exchange.durable}",
            type= "${spring.rabbitmq.listener.order.exchange.type}",
            ignoreDeclarationExceptions = "${spring.rabbitmq.listener.order.exchange.ignoreDeclarationExceptions}"),
            key = "${spring.rabbitmq.listener.order.key}"
            )
    )
    @RabbitHandler
    public void onOrderMessage(@Payload com.bfxy.springboot.entity.Order order,
            Channel channel,
            @Headers Map<String, Object> headers) throws Exception {
        System.err.println("--------------------------------------");
        System.err.println("消费端order: " + order.getId());
        Long deliveryTag = (Long)headers.get(AmqpHeaders.DELIVERY_TAG);
        //手工ACK
        channel.basicAck(deliveryTag, false);
    }
}

Springcloud Stream整合

消息的生产和发送可以采用不同的消息中间件

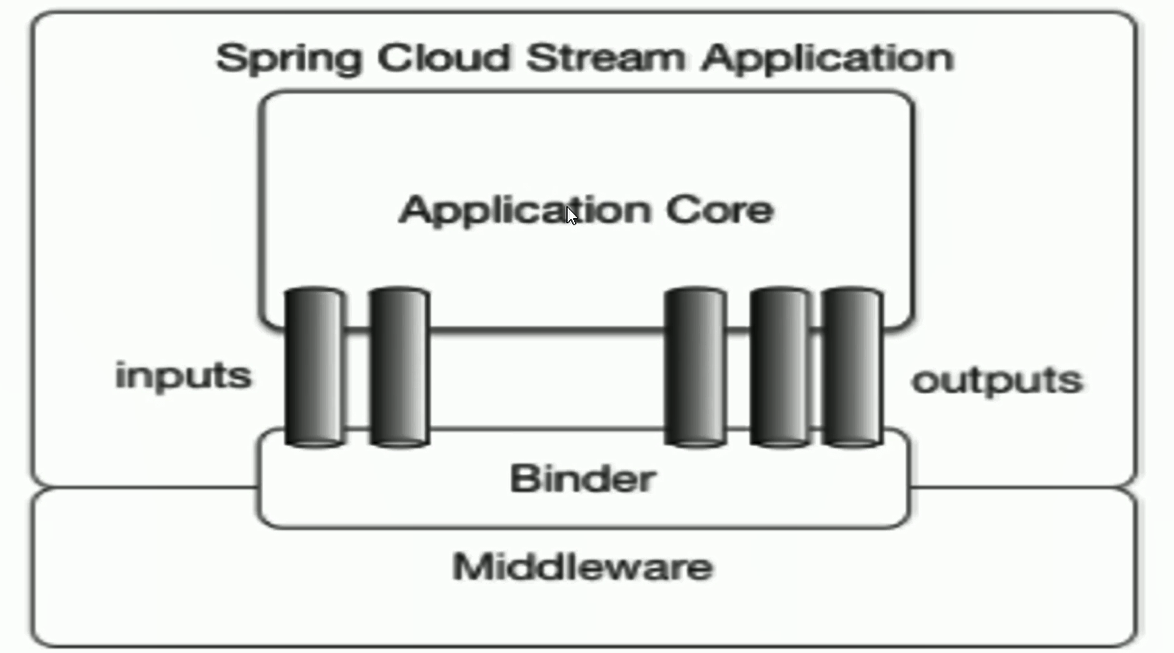

mq8

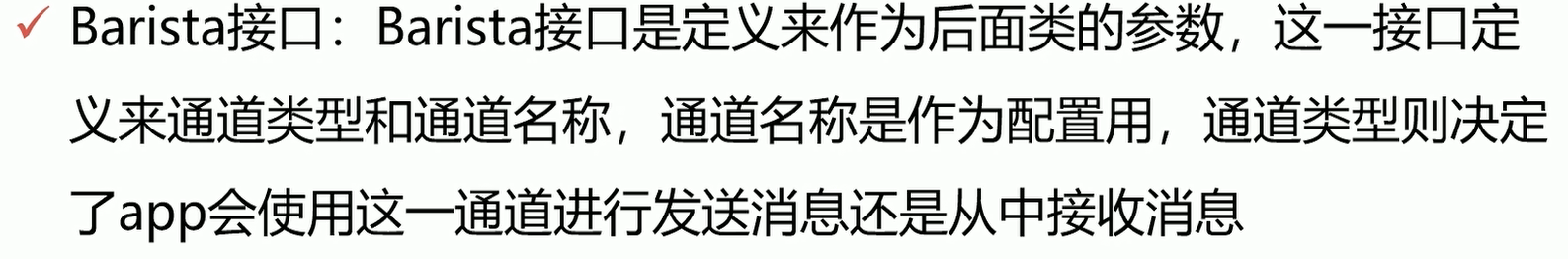

mq9

@Output：输出注解，用于定义发送消息接口
@Input：输入注解，用于定义消息的消费者接口
@StreamListener：用于定义监听方法的注解

但是不能保证100%可靠性投递，兼容rabbitmq，Kafka

添加依赖

<dependencies>
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-web</artifactId>
        </dependency>
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter</artifactId>
        </dependency>
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-test</artifactId>
            <scope>test</scope>
        </dependency>
        <dependency>
            <groupId>org.springframework.cloud</groupId>
            <artifactId>spring-cloud-starter-stream-rabbit</artifactId>
            <version>1.3.4.RELEASE</version>
        </dependency>
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-actuator</artifactId>
        </dependency>

生产端

properties

server.port=8001
server.servlet.context-path=/producer

spring.application.name=producer
spring.cloud.stream.bindings.output_channel.destination=exchange-3
spring.cloud.stream.bindings.output_channel.group=queue-3
spring.cloud.stream.bindings.output_channel.binder=rabbit_cluster

spring.cloud.stream.binders.rabbit_cluster.type=rabbit
spring.cloud.stream.binders.rabbit_cluster.environment.spring.rabbitmq.addresses=192.168.11.76:5672
spring.cloud.stream.binders.rabbit_cluster.environment.spring.rabbitmq.username=guest
spring.cloud.stream.binders.rabbit_cluster.environment.spring.rabbitmq.password=guest
spring.cloud.stream.binders.rabbit_cluster.environment.spring.rabbitmq.virtual-host=/

Barista

import org.springframework.cloud.stream.annotation.Output;
import org.springframework.messaging.MessageChannel;

/**
 * <B>中文类名：</B><BR>
 * <B>概要说明：</B><BR>
 * 这里的Barista接口是定义来作为后面类的参数，这一接口定义来通道类型和通道名称。
 * 通道名称是作为配置用，通道类型则决定了app会使用这一通道进行发送消息还是从中接收消息。
 */
public interface Barista {

    //String INPUT_CHANNEL = "input_channel";
    String OUTPUT_CHANNEL = "output_channel";

    //注解@Input声明了它是一个输入类型的通道，名字是Barista.INPUT_CHANNEL，也就是position3的input_channel。这一名字与上述配置app2的配置文件中position1应该一致，表明注入了一个名字叫做input_channel的通道，它的类型是input，订阅的主题是position2处声明的mydest这个主题
//    @Input(Barista.INPUT_CHANNEL)
//    SubscribableChannel loginput();
    //注解@Output声明了它是一个输出类型的通道，名字是output_channel。这一名字与app1中通道名一致，表明注入了一个名字为output_channel的通道，类型是output，发布的主题名为mydest。
    @Output(Barista.OUTPUT_CHANNEL)
    MessageChannel logoutput();

//    String INPUT_BASE = "queue-1";
//    String OUTPUT_BASE = "queue-1";
//    @Input(Barista.INPUT_BASE)
//    SubscribableChannel input1();
//    MessageChannel output1();

}

sender

import java.util.Map;

import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.cloud.stream.annotation.EnableBinding;
import org.springframework.messaging.Message;
import org.springframework.messaging.MessageHeaders;
import org.springframework.messaging.support.MessageBuilder;
import org.springframework.stereotype.Service;

@EnableBinding(Barista.class)
@Service
public class RabbitmqSender {

    @Autowired
    private Barista barista;

    // 发送消息
    public String sendMessage(Object message, Map<String, Object> properties) throws Exception {
        try{
            MessageHeaders mhs = new MessageHeaders(properties);
            Message msg = MessageBuilder.createMessage(message, mhs);
            boolean sendStatus = barista.logoutput().send(msg);
            System.err.println("--------------sending -------------------");
            System.out.println("发送数据：" + message + ",sendStatus: " + sendStatus);
        }catch (Exception e){
            System.err.println("-------------error-------------");
            e.printStackTrace();
            throw new RuntimeException(e.getMessage());

        }
        return null;
    }

}

消费端

server.port=8002
server.context-path=/consumer

spring.application.name=consumer
spring.cloud.stream.bindings.input_channel.destination=exchange-3
spring.cloud.stream.bindings.input_channel.group=queue-3
spring.cloud.stream.bindings.input_channel.binder=rabbit_cluster
spring.cloud.stream.bindings.input_channel.consumer.concurrency=1
spring.cloud.stream.rabbit.bindings.input_channel.consumer.requeue-rejected=false
spring.cloud.stream.rabbit.bindings.input_channel.consumer.acknowledge-mode=MANUAL
spring.cloud.stream.rabbit.bindings.input_channel.consumer.recovery-interval=3000
spring.cloud.stream.rabbit.bindings.input_channel.consumer.durable-subscription=true
spring.cloud.stream.rabbit.bindings.input_channel.consumer.max-concurrency=5

spring.cloud.stream.binders.rabbit_cluster.type=rabbit
spring.cloud.stream.binders.rabbit_cluster.environment.spring.rabbitmq.addresses=192.168.11.76:5672
spring.cloud.stream.binders.rabbit_cluster.environment.spring.rabbitmq.username=guest
spring.cloud.stream.binders.rabbit_cluster.environment.spring.rabbitmq.password=guest
spring.cloud.stream.binders.rabbit_cluster.environment.spring.rabbitmq.virtual-host=/

import org.springframework.cloud.stream.annotation.Input;
import org.springframework.messaging.SubscribableChannel;

/**
 * <B>中文类名：</B><BR>
 * <B>概要说明：</B><BR>
 * 这里的Barista接口是定义来作为后面类的参数，这一接口定义来通道类型和通道名称。
 * 通道名称是作为配置用，通道类型则决定了app会使用这一通道进行发送消息还是从中接收消息。
 * @author ashen（Alienware）
 * @since 2016年7月22日
 */

public interface Barista {

    String INPUT_CHANNEL = "input_channel";

    //注解@Input声明了它是一个输入类型的通道，名字是Barista.INPUT_CHANNEL，也就是position3的input_channel。这一名字与上述配置app2的配置文件中position1应该一致，表明注入了一个名字叫做input_channel的通道，它的类型是input，订阅的主题是position2处声明的mydest这个主题
    @Input(Barista.INPUT_CHANNEL)
    SubscribableChannel loginput();


}

import org.springframework.amqp.support.AmqpHeaders;
import org.springframework.cloud.stream.annotation.EnableBinding;
import org.springframework.cloud.stream.annotation.StreamListener;
import org.springframework.messaging.Message;
import org.springframework.stereotype.Service;

import com.rabbitmq.client.Channel;


@EnableBinding(Barista.class)
@Service
public class RabbitmqReceiver {

    @StreamListener(Barista.INPUT_CHANNEL)
    public void receiver(Message message) throws Exception {
        Channel channel = (com.rabbitmq.client.Channel) message.getHeaders().get(AmqpHeaders.CHANNEL);
        Long deliveryTag = (Long) message.getHeaders().get(AmqpHeaders.DELIVERY_TAG);
        System.out.println("Input Stream 1 接受数据：" + message);
        System.out.println("消费完毕------------");
        channel.basicAck(deliveryTag, false);
    }
}
